Mindray M6 User Manual

Probes and Biopsy 12-19
No. Name Description
6. Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used.
7. Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
8.
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
9. Needle guide hole Used for installing the biopsy needle.
10.
Pinch nut of needle-guided
bracket
Used for locking the needle-guided bracket and the
probe

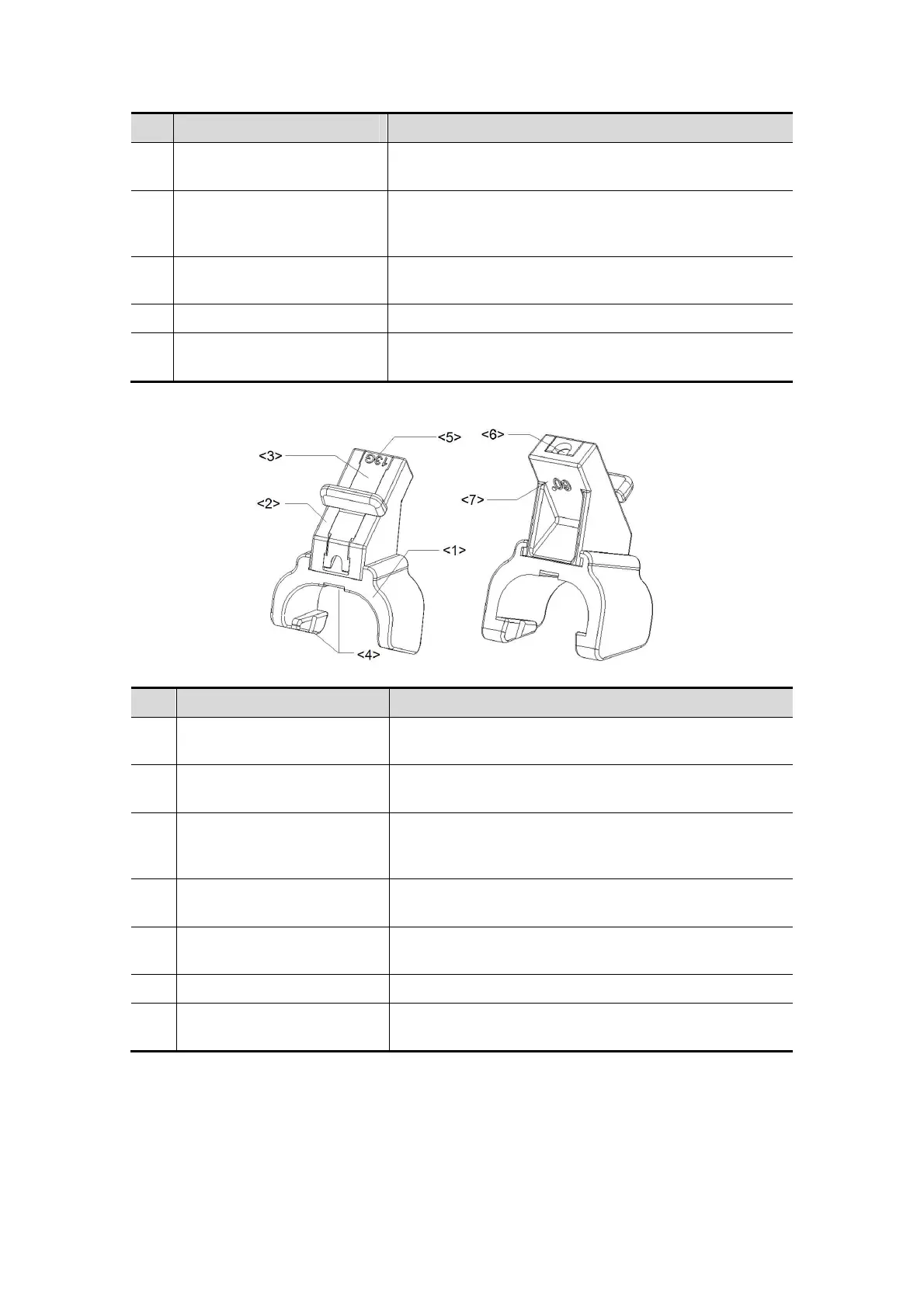

 Plastic needle-guided bracket:
No. Name Description
<1>
Support of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<2> Angle block
Used for determining the angle of the biopsy; there
are three specifications of blocks of angle.
<3> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<4>
Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of the
probe.
<5>
Specification of guiding
block (13G)
Matched with the corresponding biopsy needle (13G).
<6> Needle guide hole Used for installing the biopsy needle.
<7>
Specification of angle block
(60°)
Corresponding to the size of the biopsy angle (60°).

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
