Probes and Biopsy 12-23

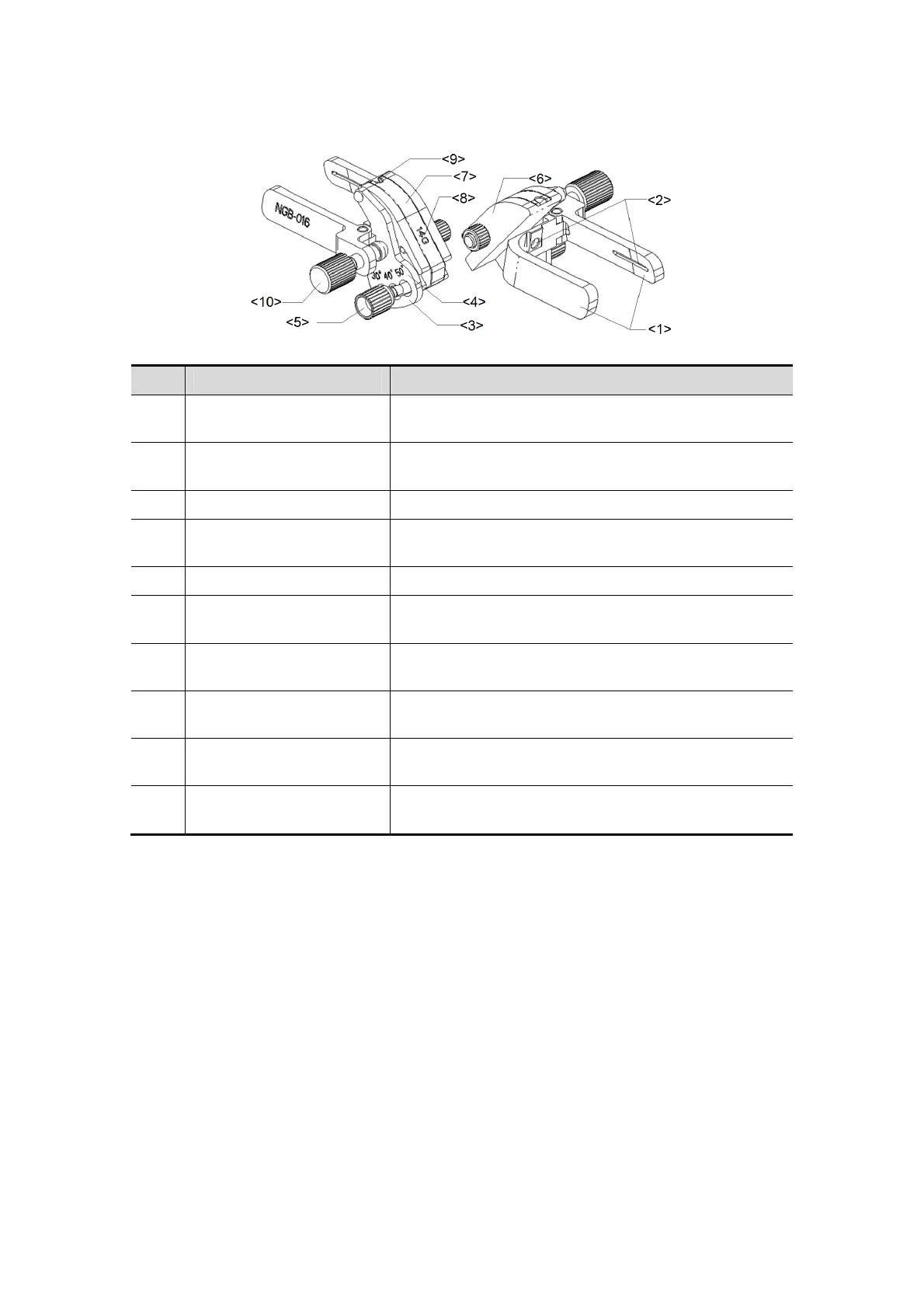

 NGB-016
No. Name Description
<1>
Clamp of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove of the
needle-guided bracket
Matches with the tab of the probe.
<3> Angle adjusting base There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (30°, 40°,
50°)
Matches with the biopsy angle. (30°, 40°, 50°).
<5> Angle pinch nut Used for fixing the angle lock at a chosen angle.
<6> Angle block
Determines the angle of the biopsy; different
specifications of blocks can be used.
<7> Guiding block
Used for installing the needles of different
specifications, 5 types of needles are available.
<8>
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
<9>
Guiding hole of biopsy
needle
Used for installing the needles.
<10>
Pinch nut of
needle-guided bracket
Used for locking the needle-guided bracket and the
probe.
