Mindray M6 User Manual

12-22 Probes and Biopsy
 NGB-011
 NGB-015

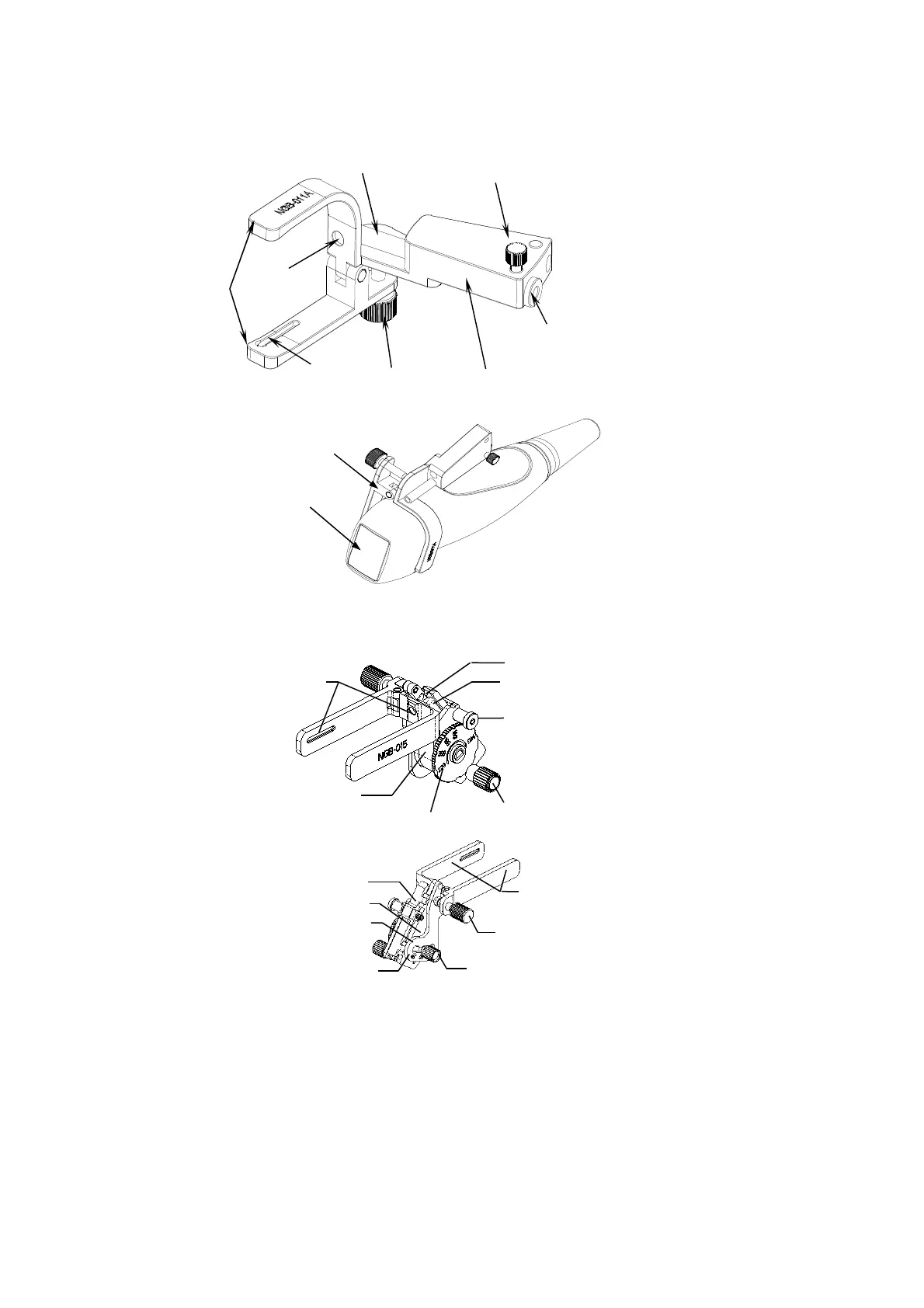

Lock pin
Needle fixing nut
Needle type dial scale
Needle type
adjusting base
Groove
Clamp
Pinch nut
Angle pinch nut
Angle shift sign
Angle adjusting
base
Angle block
V-shaped cover
V-shaped guiding block
Guiding
hole
Needle guide rack
Needle guide
hole
Grip
knob
Locating groove
Clamp
Clamping knob of
the needle guide
Needle guide
Locating
pit
Probe
Needle-guided
bracket

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
