Mindray M6 User Manual

Probes and Biopsy 12-21
 NGB-010
5
1
2
3
4
6
7
8

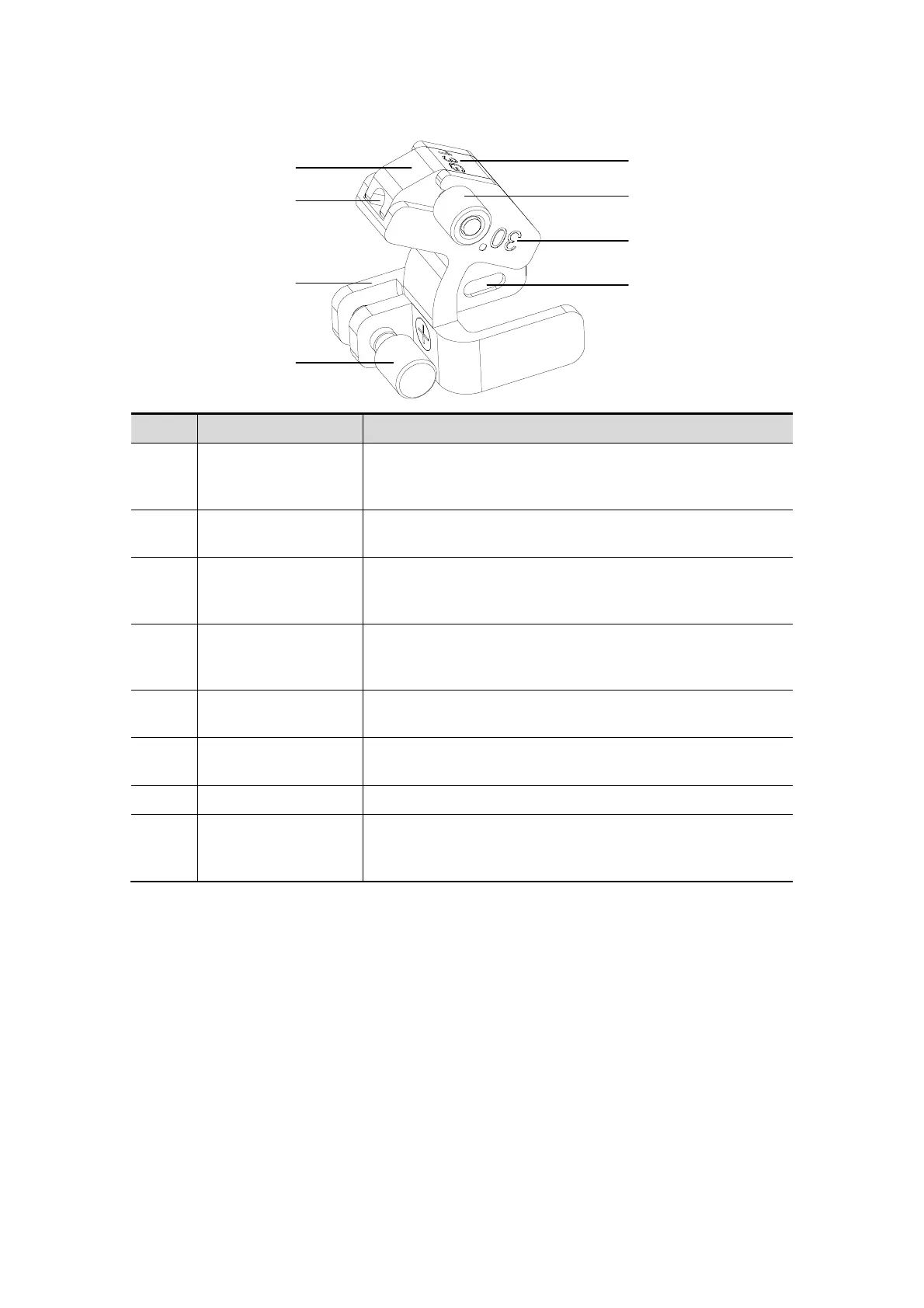

No. Name Description
1 Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
2
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
3
Support of
needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
4
Knob of fixing
needle-guided
bracket
Used for fixing the needle-guided bracket on the probe.
5
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G).
6
Knob of fixing the
guiding block
Used for fixing the guiding block.
7 Needle guide angle The needle guide angle of this needle-guided bracket.
8
Grooves of the
needle-guided
bracket
Matched with the tabs of the probe.

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
