Structure and Assembly/Disassembly 8-3
8.2 Main Unit Assembly/Disassembly
This section describes the disassembling and assembling of the main parts and hardware boards.
The assembling is the inverse process of disassembling if not mentioned in particular.

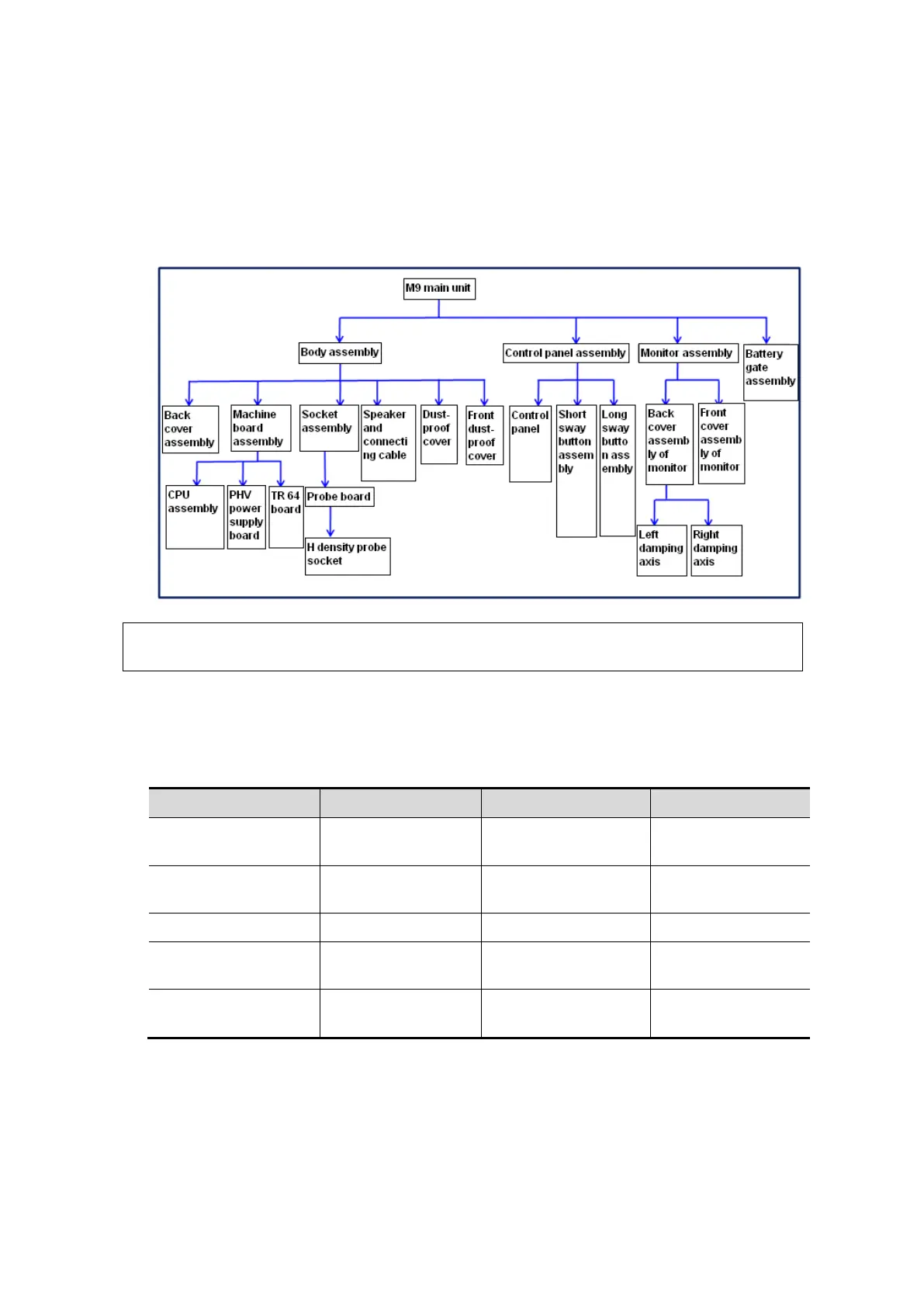

Sketch
8.2.1 Preparation
8.2.1.1 Disassembly Tools Required
Name Type Material No. Remarks
Cross-headed
screwdriver 107*75 / M2
Cross-headed
screwdriver 102*100 0000-10-10884
M3、M4
Spanner 1PK-H024 095-000063-00 4″
pliers
N-206S 095-000077-00 /
Anti-electrostatic
glove: 1 pair.
/ / /
8.2.1.2 Engineers Required
The disassembly should be performed by professionals from Mindray or the staff who are qualified
for the maintenance after the training.
Note: The illustration of disassembly is for reference only; please relies on the actual
model.
