Structure and Assembly/Disassembly 8-23
11. TGC dust-proof cover
TGC dust-proof cover is installed on TGC board via interference fit of silicon bearings. Remove
TGC dust-proof from TGC board.
8.2.12 Display (monitor) Assembly
1. Remove the monitor assembly. See Chapter 9.2.4 for details.
2. Disassemble front cover of the monitor.
Take out 4 screw caps from 4 corners of the monitor. Unscrew four screws inside.
Note: keep screw caps properly.

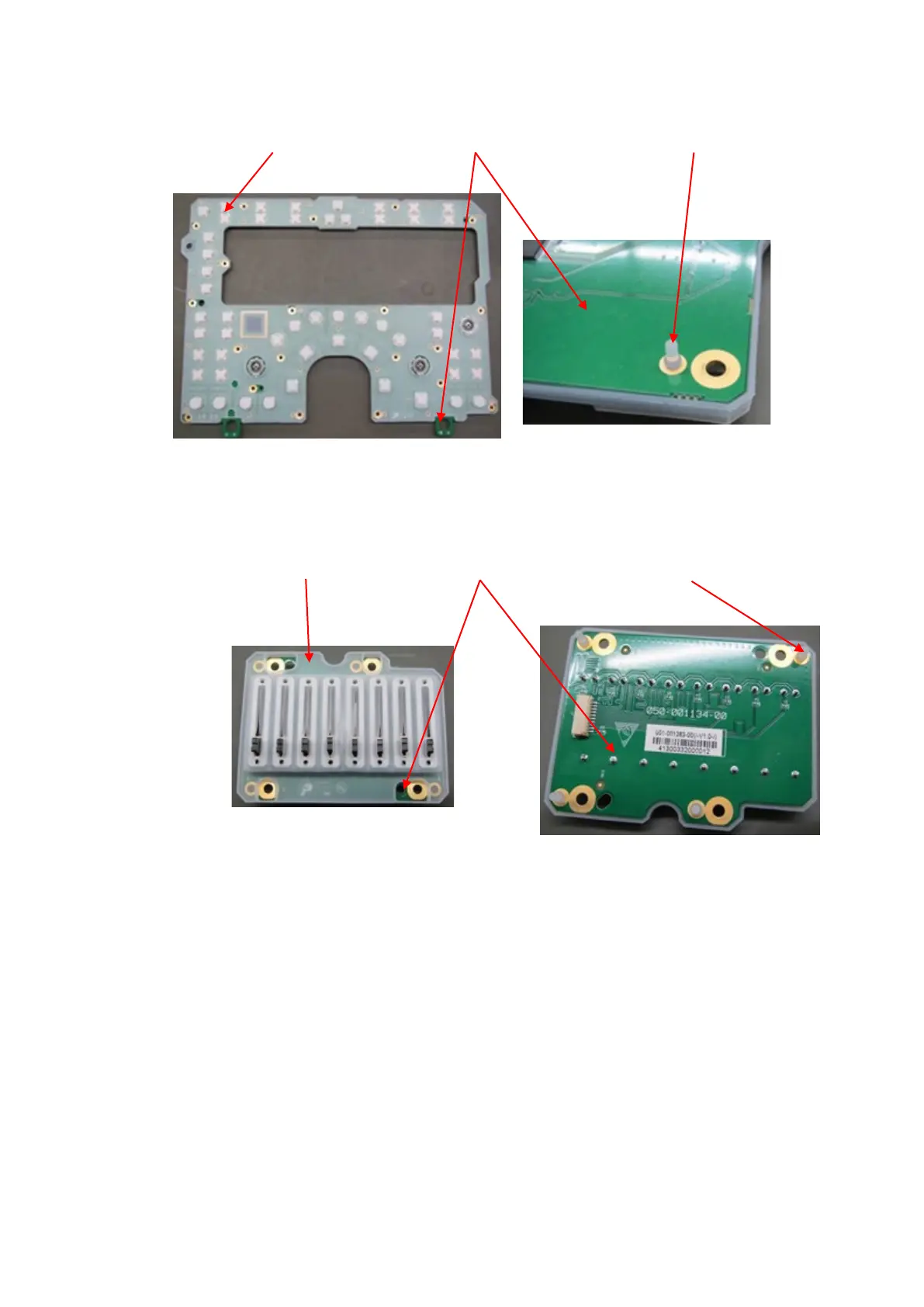

TGC dust-proof cover
TGC board
Silicon bearing (4 bearings)
Silicon keyboard
Control panel PCBA
Silicon bearing (24 bearings)
