S
truc
ture
and Ass
embly/Disassembl
y
8-
45

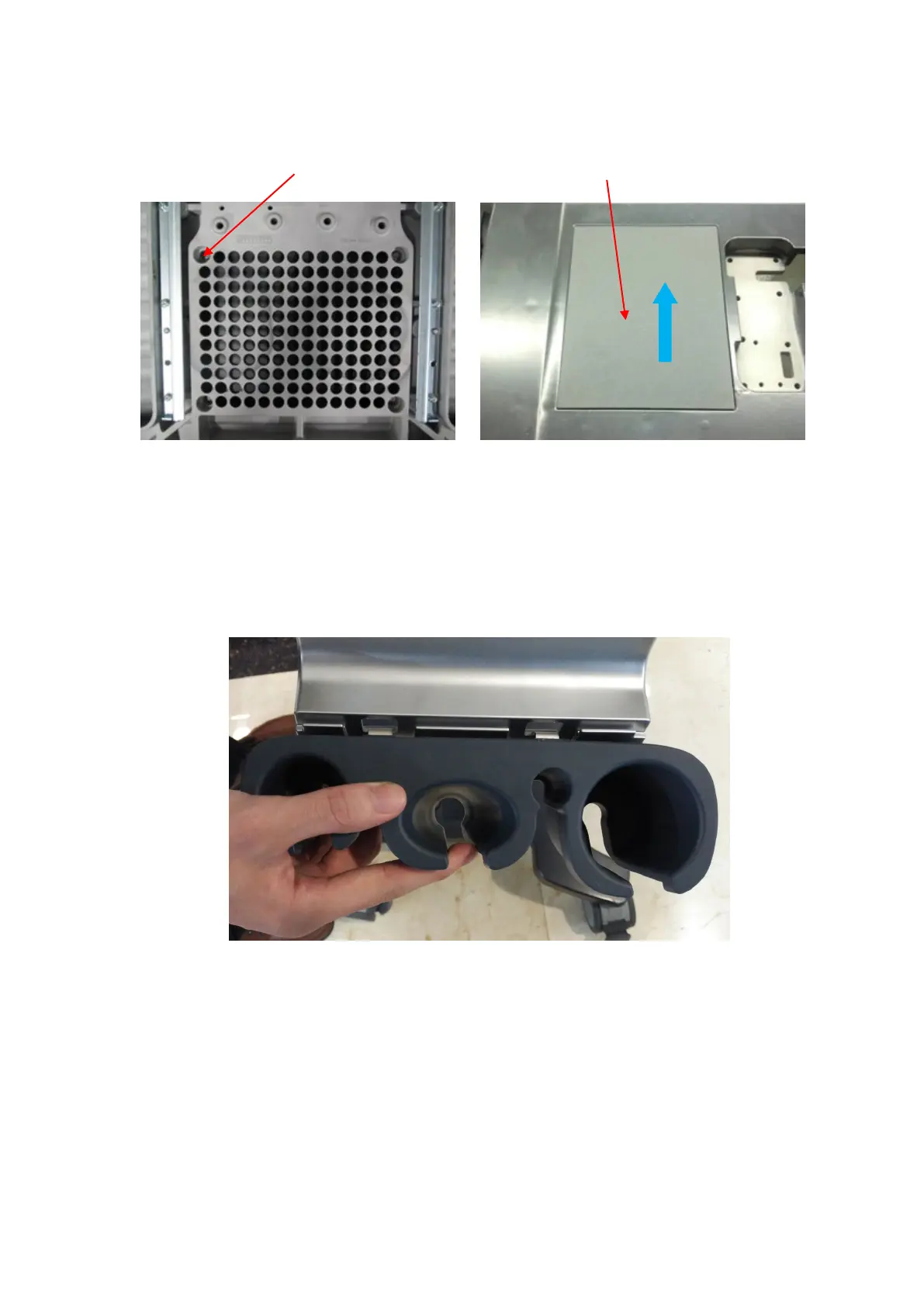

8.3.9
Inst
allation of probe holder
1.
T
wo hooks of probe holder are insert
ed into holder brac
ket diagonally
.
2.
Press the probe holder inward as well as downwa
rd at the same t
ime.
M3X8 cross panhead screw
(4 screws)
Remove the decorative cover
towards arrow’s direction
174
176
