System Diagnosis and Support
10-1
10 System Diagnosis and
Support

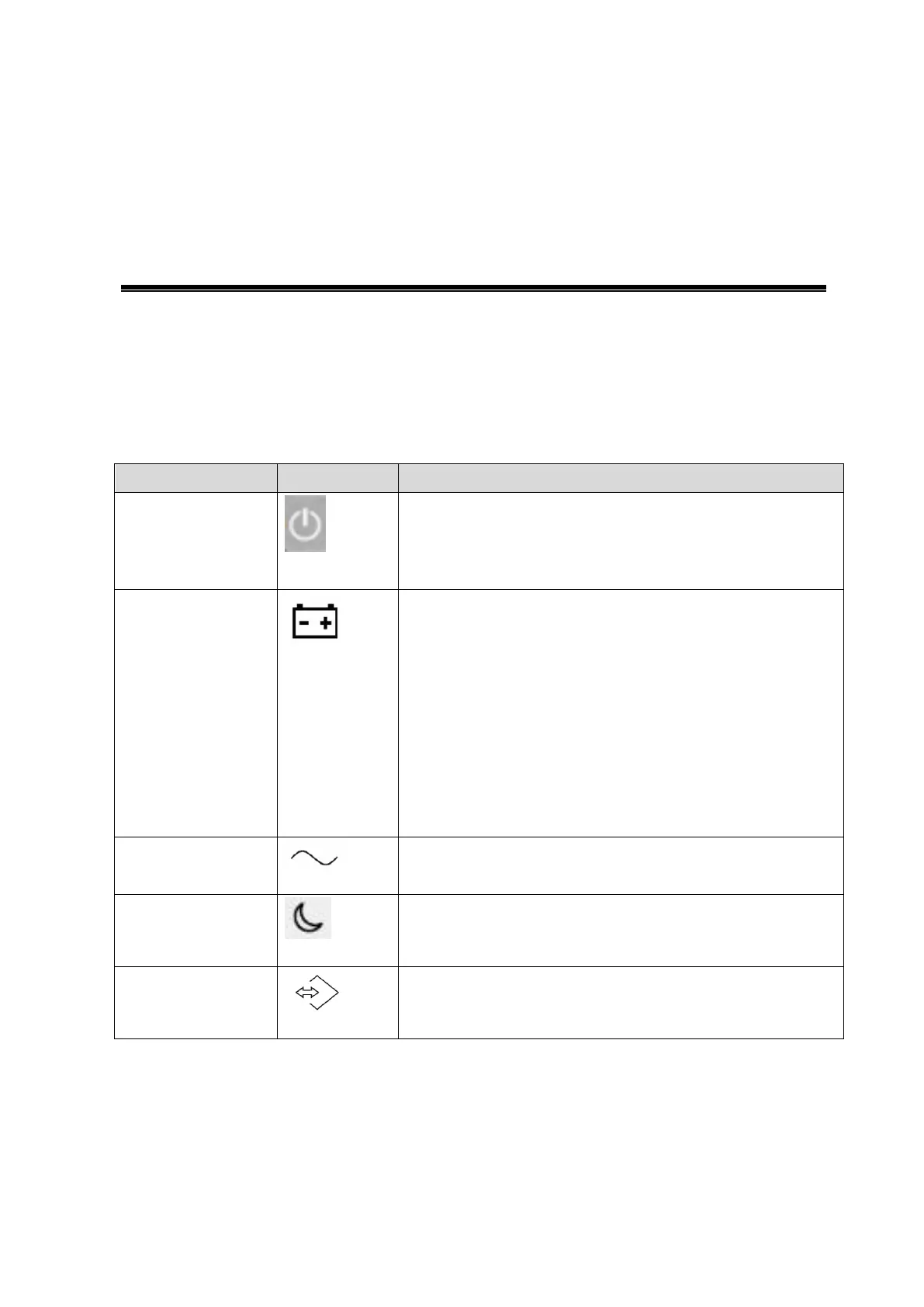

10.1 General Status Indicator
10.1.1 Indicators of Control Panel
Status indicators Icon Status definition and indicators
Power-
indicator
Off: System turned off;
When pressing the key, the indicator blinks green first and
then blinks orange;
After powering on, the indicator is green.
indicator
1 It illuminates in orange color when batteries are charging;
2 It illuminates in green color when batteries are charged to
full capacity;
3 The battery discharges with more than 20% electricity,
and the indicator is green.
4 The battery discharges with less than 20% electricity, and
the indicator blinks orange.
5 The battery discharges with less than 5% electricity, and
the indicator blinks orange quickly.
6 When the battery is in non-charge/discharge status, the
indicator is not on.
AC indicator
The indicator is green at AC supply.
The indicator is off when batteries supplied.
Stan
indicator
The standby indicator blinks orange.
Other status: light off
Hard disk indicator
The indicator light flashes in green when the hard disk is
reading or writing.
The indicator is off automatically in other situations.
