Mindray M9T User Manual

Product Principle 4-11
4.9 Probe Extension Board
Probe Extend Board
C probe socket
260pin
B probe socket
260pin
A probe socket
260pin
POUT signal switch
（relay set）
CPLD
Probe signal
4D&TEE signal
Probe control
circuit
Probe control signal
12V/5.7V
/+100V/-100V
128 channel
Transmitting／receiving signal
260PIN
probe
connector
Probe Board
Communication
&control
Power supply
Ultrasound signal
4D&TEE signal
switch
（relay set）

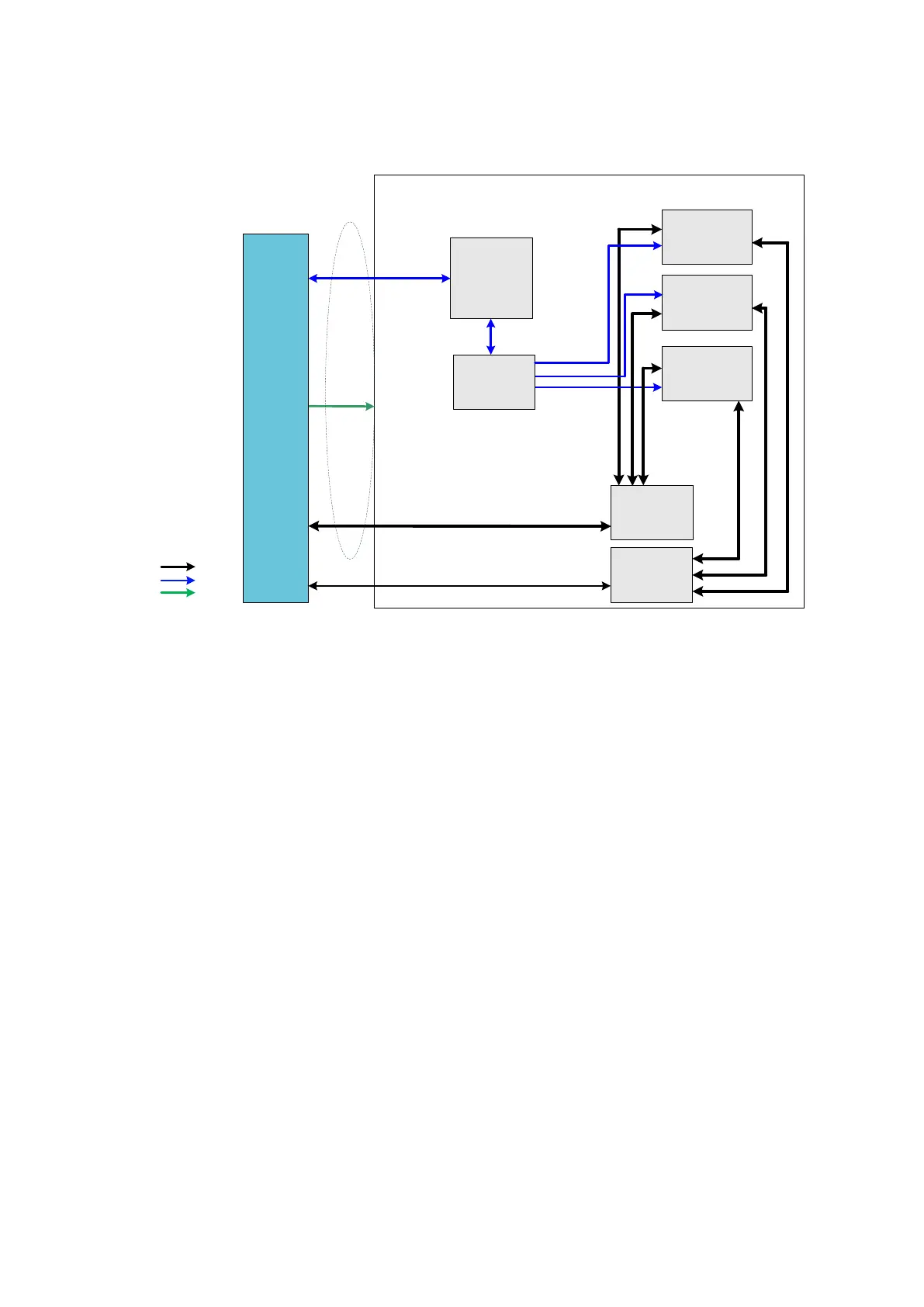

Figure 4-9 Hardware diagram of probe extension board
Function description:
 Supports 192/128 array probe, 4D probe, phased array probe, bi-plane probe, and other
nominal probes, etc.
 Implements the switch of 192 array probe within the probe. Probe board only supports 128
channels.
 Probe board contains three 260pin Mini probe sockets.
 Supports the retrieving of three probes’ IDs and the switch among three probe socket. ID
recognition and the circuit of probe switch are independent to each other.
