3-18 System Installation

3.6.3 System Preset

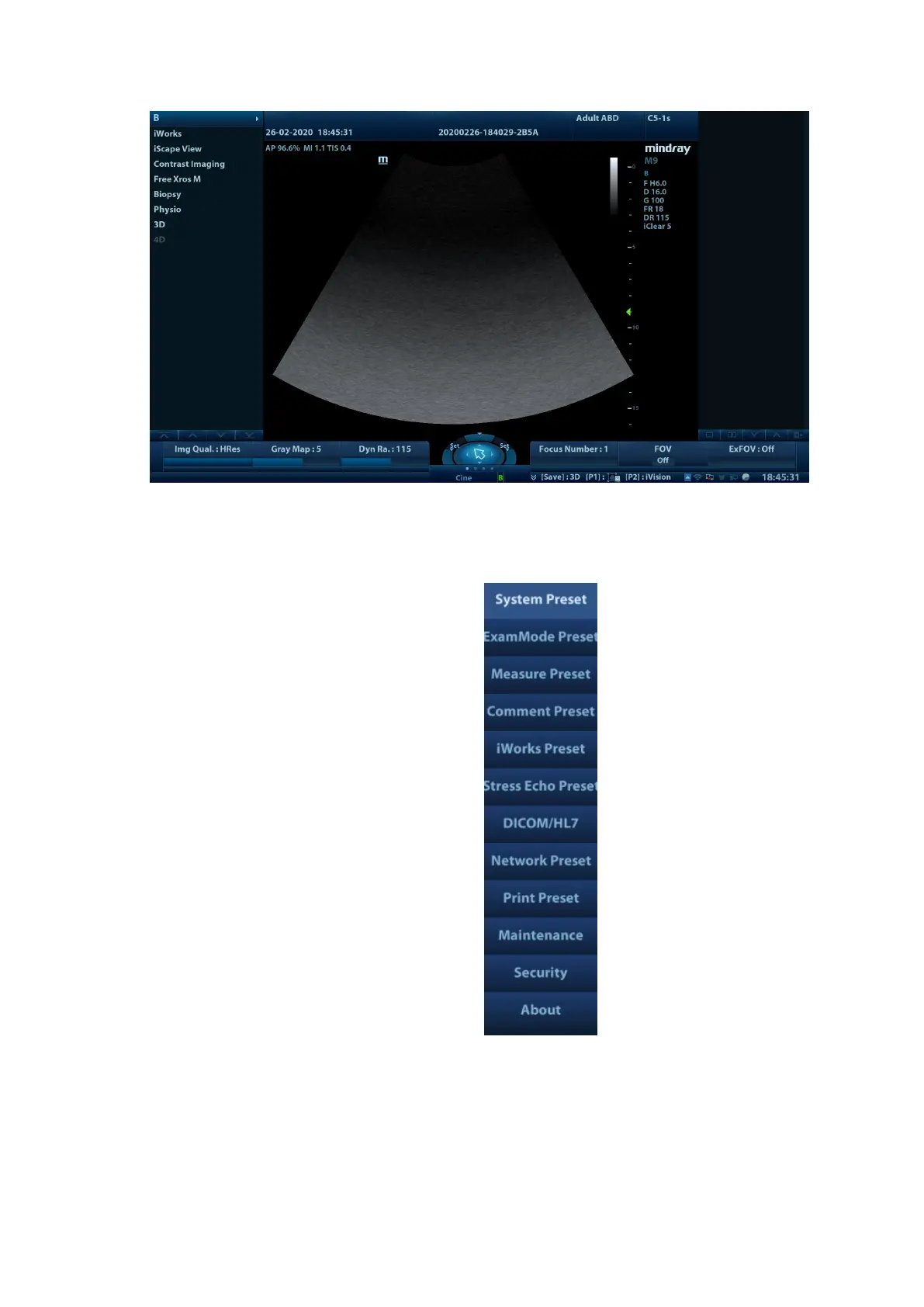

1. Press [Setup]. Setup menu appears.

2. Click [System Preset] to enter System Preset interface.
