8-4 Structure and Assembly/Disassembly
8.2.1.3 Disassembly Requirements
Be prepared before disassembling ultrasound device.
1. Stop scanning the patient and capturing images. Shut down the device and cut off AC power
supply. Unplug AC power supply cable.
2. Be prepared for a softer platform and keep the platform clear. Prevent the device from scrape.
3. Get the tools and gloves prepared.
8.2.2 Battery
Note: it is recommended to remove the battery first, and the remove other parts when the power
supply is cut off.

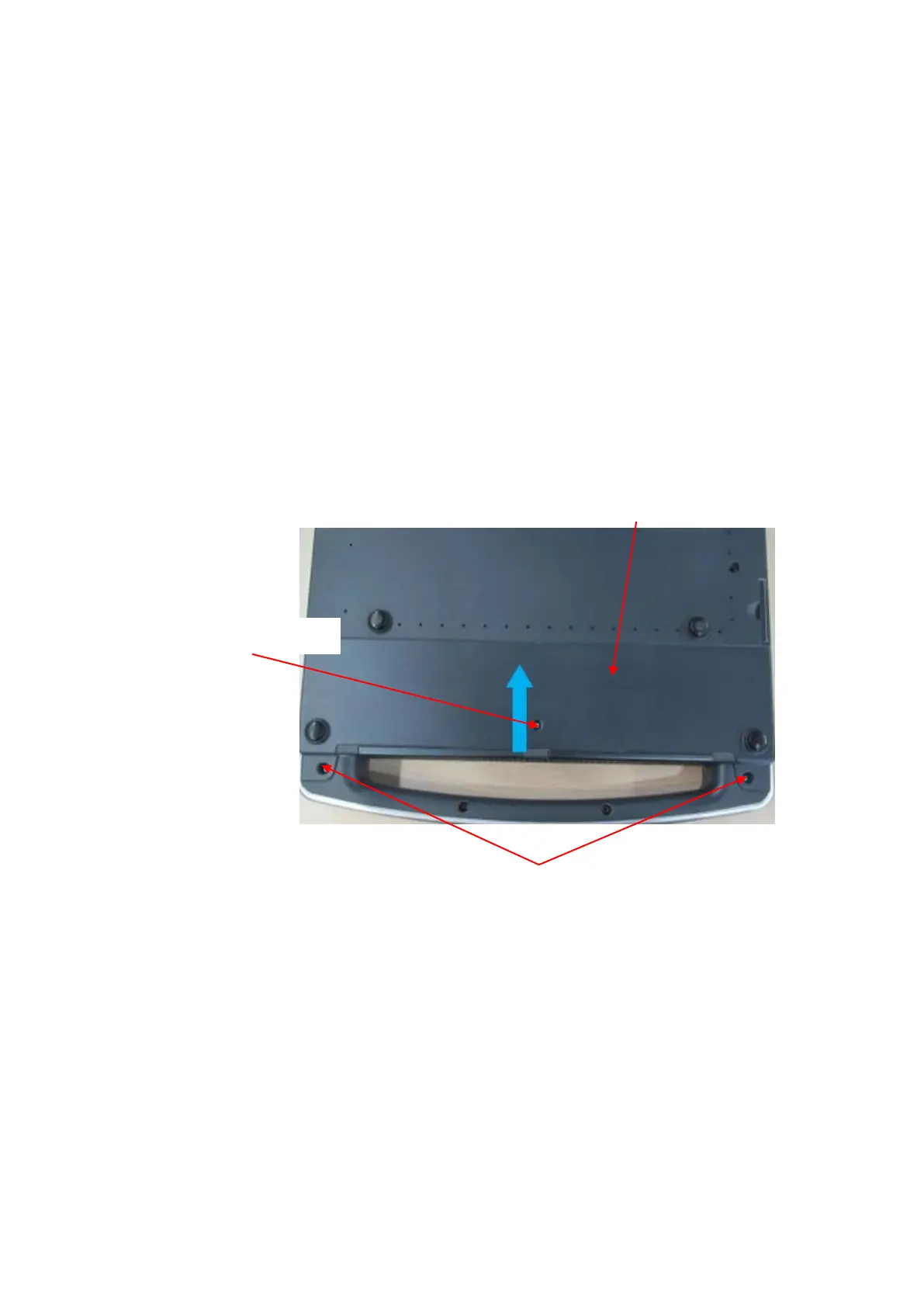

1. Unscrew 3 screws on the battery cover (2 M3 X 20 cross head screws, 1 M3 X 8 Nylok screw).
Remove the battery cover towards the direction as blue shows.
2. Pull the white tab up. Take out the battery.
M3X20 panhead screw (2 screws)
