9-4
Installation of Option Modules
9.2.1
S
torage T
ray
Remov
e the storage t
ray downwards.
T
ake out t
he tray
.
9.2.2
Probe
Extender Assembly

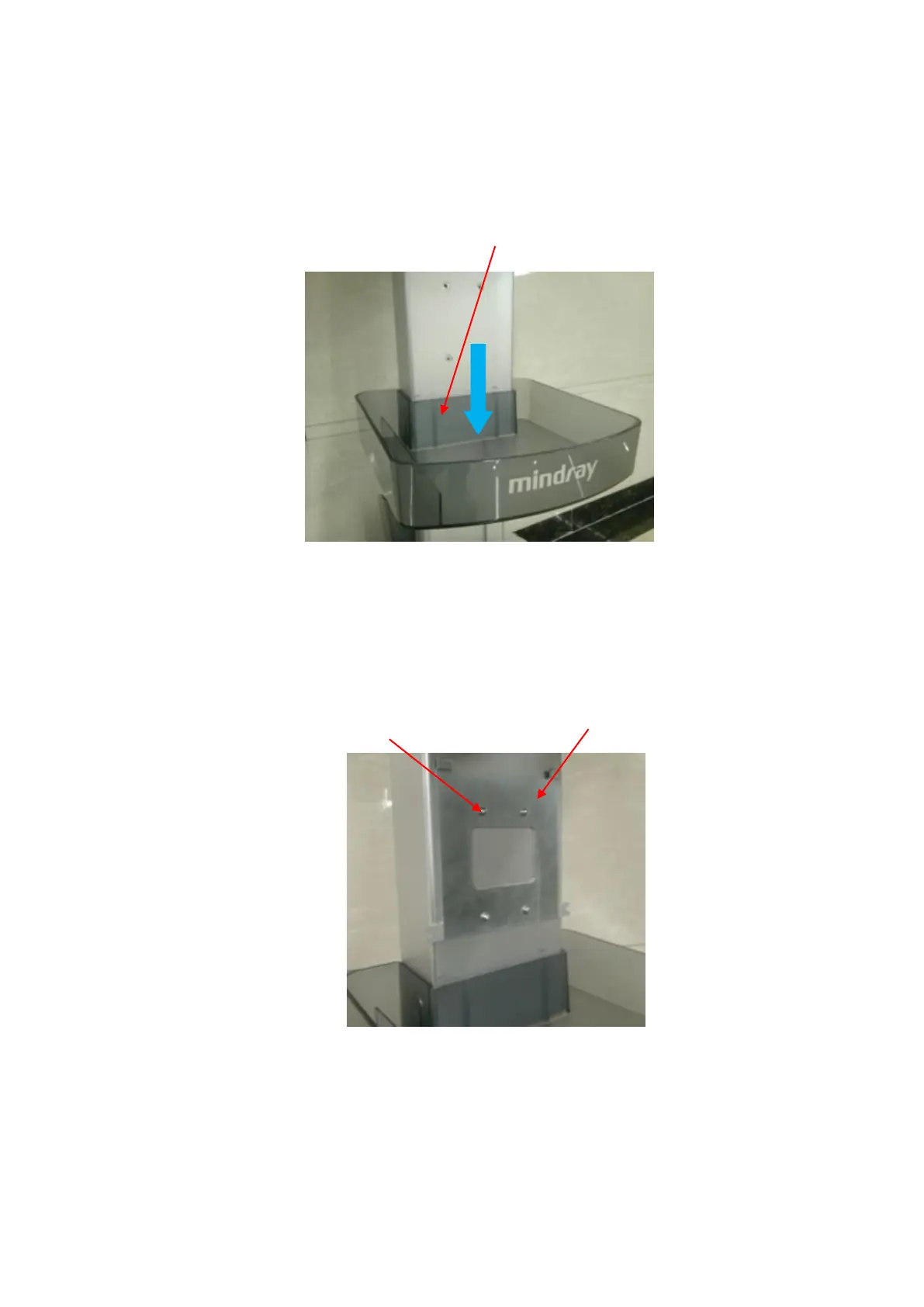

1.
Unscrew 4 screws
(M4 X 12 cross panhead screw) on the pegbo
ard of probe extender
assembly
.
Figure
9
-
1
2.
Install the probe extender
assembly towards arr
ow’s direction.
M4X12 cross panhead screw
(4 screws)
Pegboard
Remove the storage tray downwa
rds. T
ake out the tray
