8-10 Structure and Assembly/Disassembly
8.2.7 ECG Assembly

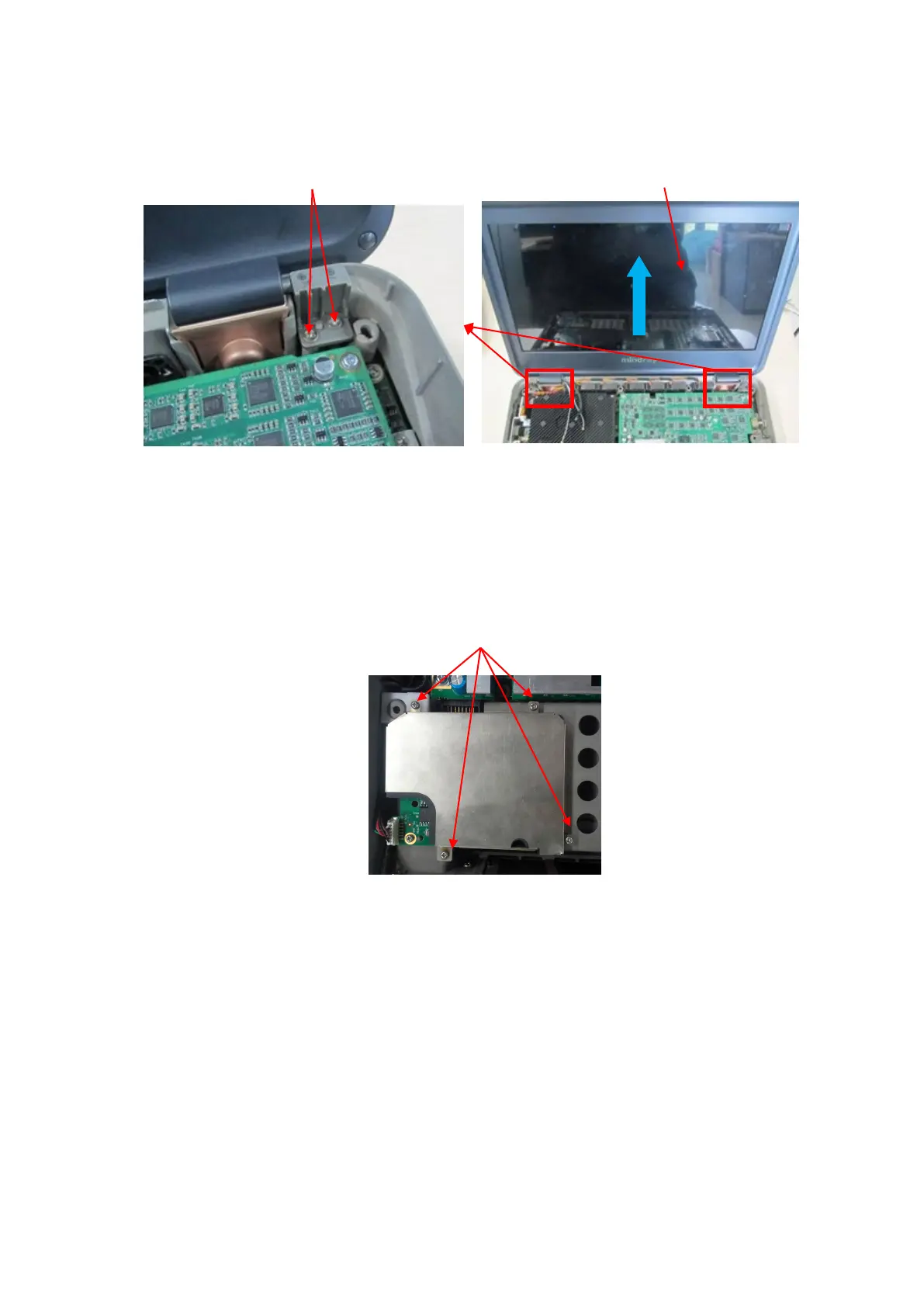

1. Remove control panel and monitor assembly. See Chapter 9.2.4 for details.
2. Unscrew 4 screws on CG shield cover (M2 X 4 stainless steel cross head screws). Remove the
shield cover.
3. Remove the ECG cable pressure plate, and remove 4 screws on ECG board ((M2 X 4 stainless
steel cross head screws). Remove ECG board. Extract ECG signal cables.
M2 X 4 stainless steel cross head screw (4 screws)
(2 screws for each left and right side)
Remove the monitor assembly
upwards
To Next Page
