3-6
System Installation
3.2.1.2
Unp
ack Main Unit

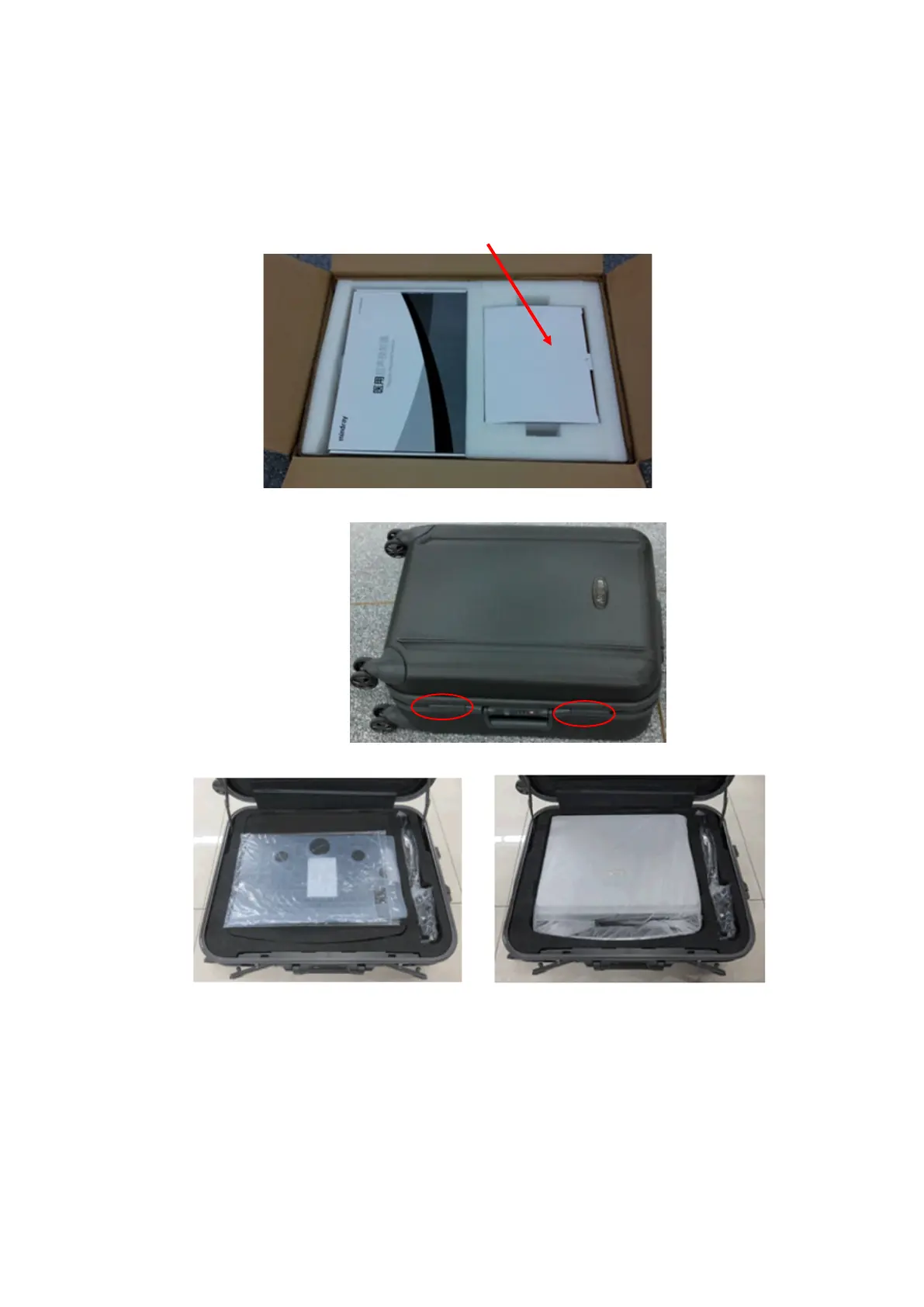

1.
Cut off four tapes of the external package
, o
pen the external bo
x, and take out the auxilia
ry box
and fixing foam;
2.
T
ake out the trolley case.
3.
Unlock the clasp t
o
open
the trolley
case
.
4.
Remove
the
protec
tive pad, and take out the main unit and adapt
or
.
5.
Remove the protect
ive pad and take out other attachments
