If the weighing platform has multiple load cells, multiply the nominal capacity
accordingly.
Example:
The weighing platform has 4 load cells each at 50 kg.
The nominal capacity is 4 x 50 kg = 200 kg.
In the example shown here, the weighing platform consists of one load cell with a
maximum capacity of 10 kg.
t Press 10.00 and conrm with the “l“ soft key.
y The “Resolution“ input eld is selected.
The smallest digit “d“ is entered in this eld in “kg“. The value must correspond
to the “D“ entry in “ADC configuration: Standard:
Ranges: Single-range mode
.“
In the example, this should be d = 0.002 kg.
t Press 0.002 and conrm with the “l“ soft key.

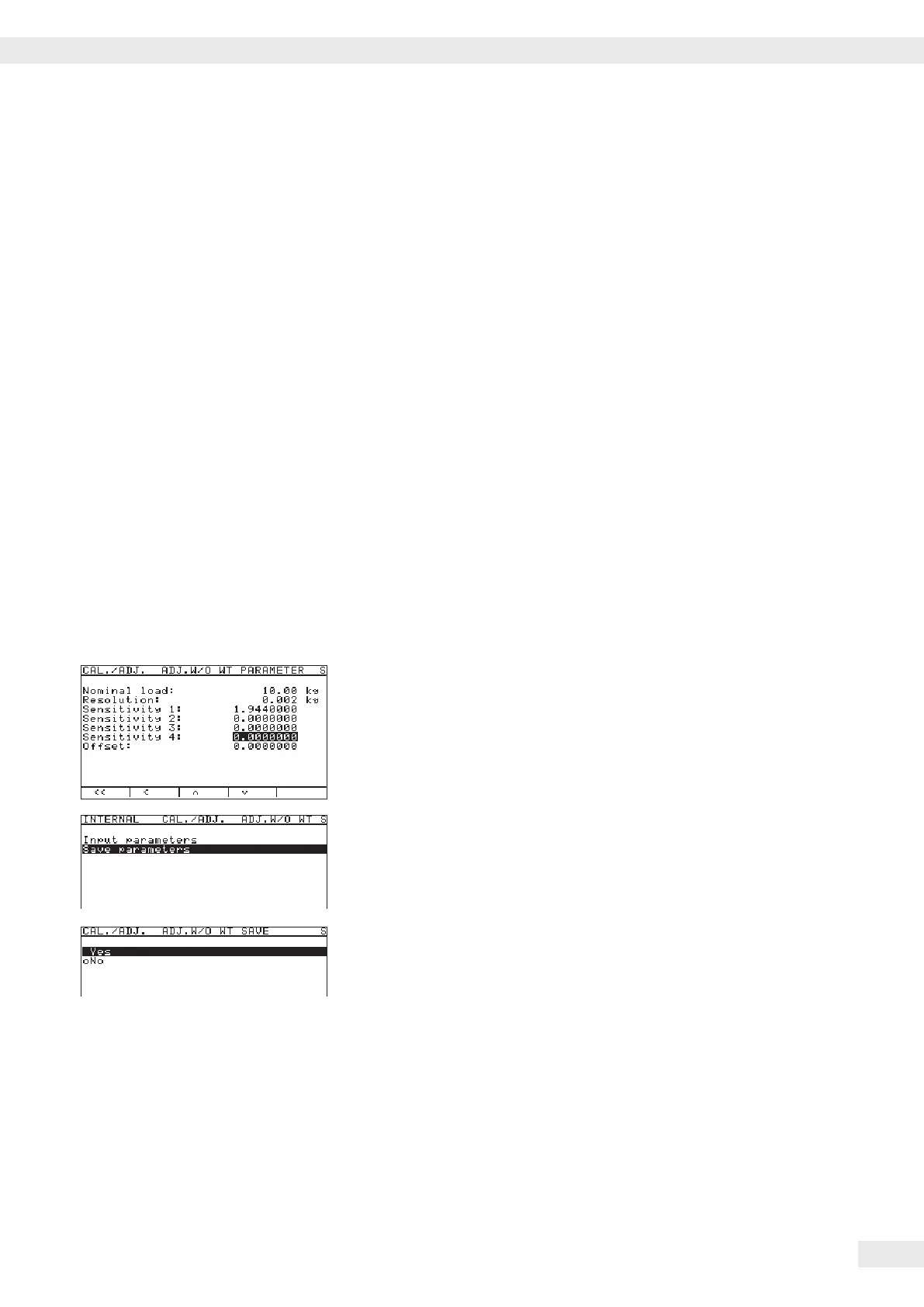

y The “Sensitivity 1“ input eld is selected.
If the weighing platform has multiple load cells, enter the sensitivity either
– under “Sensitivity 1“ … “Sensitivity 4“ as an individual
value or
– under “Sensitivity 1“ as an average value.
If an average value is entered for all cells, or if fewer than 4 load cells are
present, enter “0“ in the remaining elds. Range of permitted values: 0.01…5
mV/V.
t Press 1.944, e.g. to enter a sensitivity of 1.944 mV/V.
t Conrm using the “l“ soft key.
y The “Sensitivity 2“ input eld is selected.
t Either enter a value or set all remaining input elds to “0.“
t Conrm each using the “l“ soft key.
t Press the “o“ soft key to exit the menu.
t Use the “q“ soft key to select the “Save parameters“ submenu.
t To save the conguration, select “Yes“ and conrm using the l soft key.
In the rst line of the display, the message “Data stored“ is shown
briey.
Then the program then returns to the “No“ display status.
t Use the “o“ to return to the next menu level.
t Press M or “oo“ to exit the Setup menu.
t Slide the menu access switch to the right (= “closed“ position) and reattach the
cap.
y The display goes out and the device restarts. Then weighing mode is active.
Operating Instructions Combics Complete Scales 45
Configuring Weighing Platforms
