10

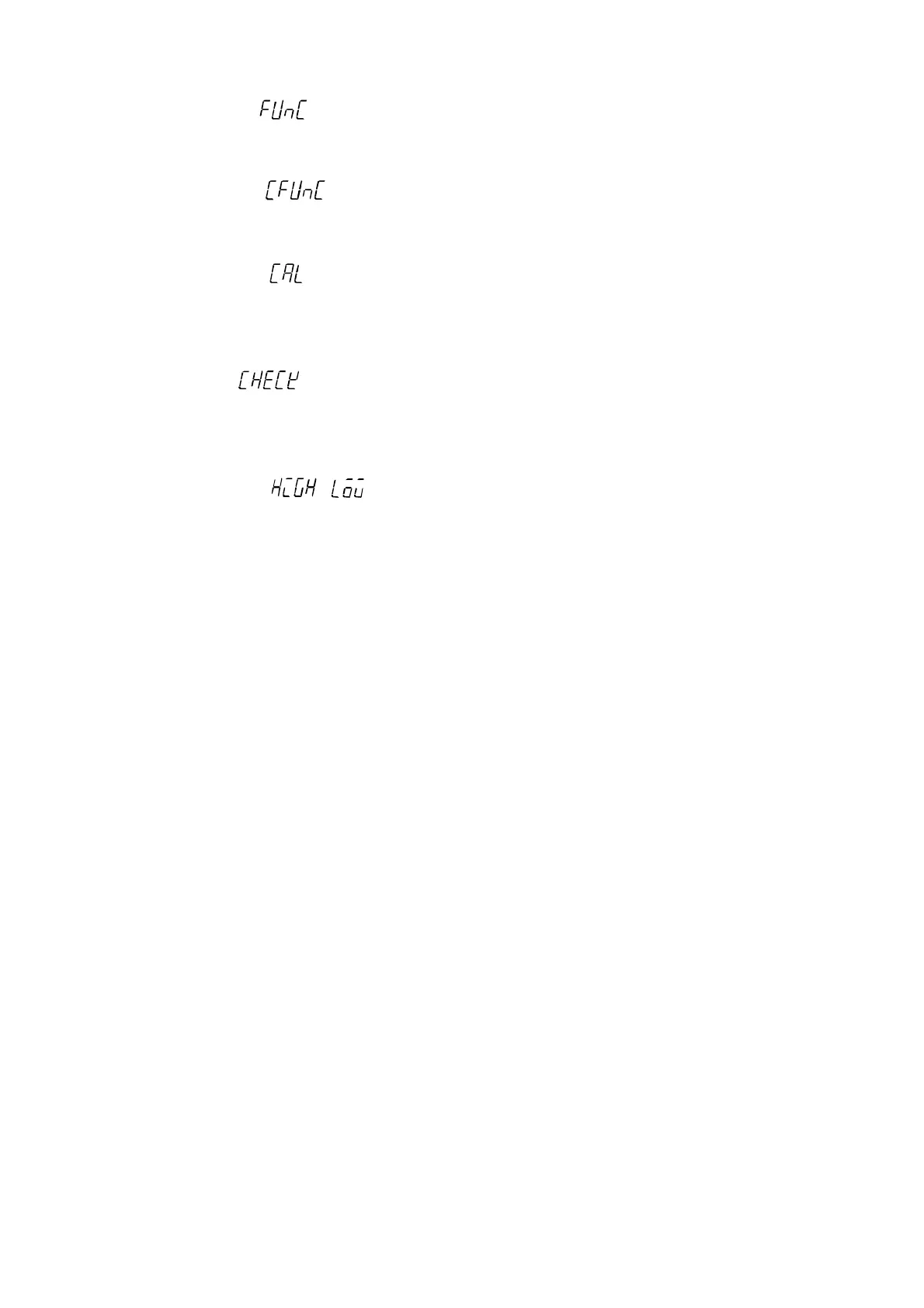

① Function mode ( )
Various functions become effective because of setting the function data.
② C function mode ( )
Various functions which relate to calibration by setting C function data become effective.
③ Calibration mode ( )
By setting the calibration data, the calibration is executed to display the electric signal from the
measuring section(load cell) as an accurate load.
④ Check mode ( )
The ROM version, the each input/output operation, the monitor of load cell output value, the BCD
output and the analog output can be confirmed by the check mode.
⑤ Comparator mode ( 、 )
The measured value and the set value are compared by setting the comparator mode.
One is the single comparison mode comparing the measured value with set upper/lower limit value, and
another is the weigh-in/weigh-out measurement mode with the output corresponding to the
comparison result after setting the four kinds of value for the target value, the pre-rated weight, fall
and near zero.
