10-4. Confirmation of contact output

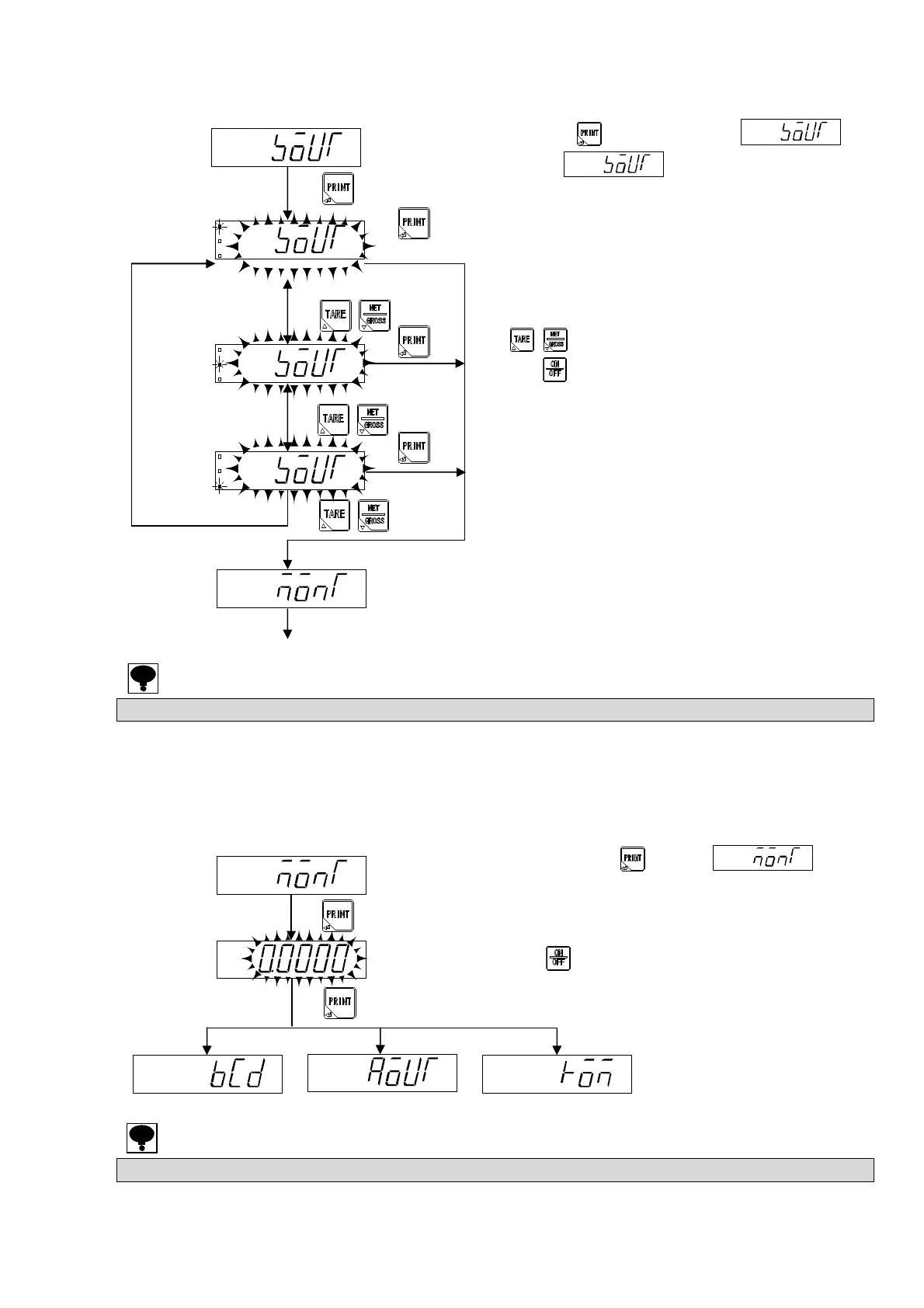

When the key is pressed from
display, display blinks.
At this time, by operating the following keys, the display
of
each judgement output is switched, and the contact
output against the position is turned on.
: Changeover the each contact output
: Quit from the check mode
10-5. Confirmation of load cell output voltage
In the confirmation of the load cell output voltage, the weight put on a present load cell is converted into mV/V.
For example, when a uncertain load cell is used, please execute the calibration based on the load cell output
value with the actual weight for the tare weight and maximum capacity.
By pressing the key from display,
the display indicates the present output voltage value
of the load cell and blinks.
: Quit from check mode.
● The contact output is an option. When optional products does not install the changeover operation of the display is executed.
The displayed load cell output voltage value is a reference value. The display accuracy is about 0.5%.
move to the confirmation of
load cell output voltage.
BCD output confirmation Analog output confirmation
with BCD with analog output
HI
OK
LO output
Changeover of ROM version
without BCD and analog output
To Next Page
