Minebea CSD-904-EX User Manual

63
13. Options
13-1. Analog output
13-1-1. Specifications of current output (P/No. : CSD904-P07)
Specifications Contents
Output DC4 mA to 20 mA
Load characteristic 510 ohm or less
Non linearity 0.05 %F.S.
Resolution Approx.1/12 000
Over range
Approx.DC2.4 mA at “-OL” display
Approx. DC21.6 mA at “OL” display
Output frequency 5 times/s、15 times/s
13-1-2. Specifications of voltage output (P/No. : CSD904-P25)
Specifications
Contents
Output DC0 V to 10 V
Load characteristic 5 k-ohm or more
Non linearity 0.05 %F.S.
Resolution Approx. 1/12 000
Over range
Approx.DC-1 V at “-OL” display
Approx. DC11 V at “OL” display
Output frequency 5 times/s, 15 times/s

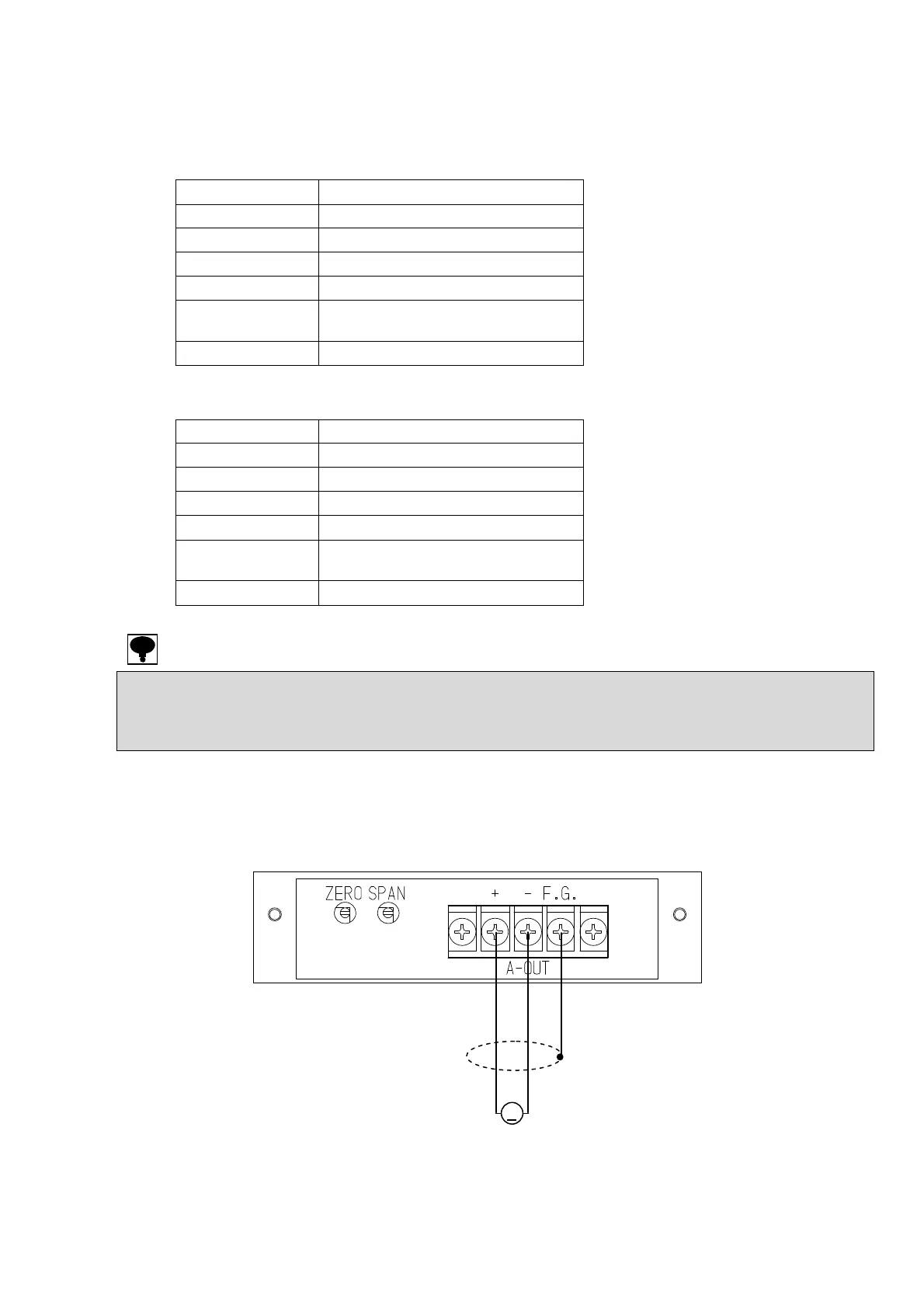

13-1-3. Connection of analog output
① Current output
● The analog output of this unit executes rewriting the output synchronizing with the display.
● The internal circuit and photocoupler is insulated.
● After turning on the power supply, the analog output has the output change element.
Please turn on the power supply for about one hour before to use it in stable condition.
A
Shield
－＋
Load resistance
510 ohm or less
