Minebea CSD-904-EX User Manual

64
② Voltage output
13-1-4. Analog output target
The analog output target is selected by C function CF-70.
The analog output target can be selected from “Display interlock”, Gross value” and “Net value”.
Default has selected “Display interlock”.

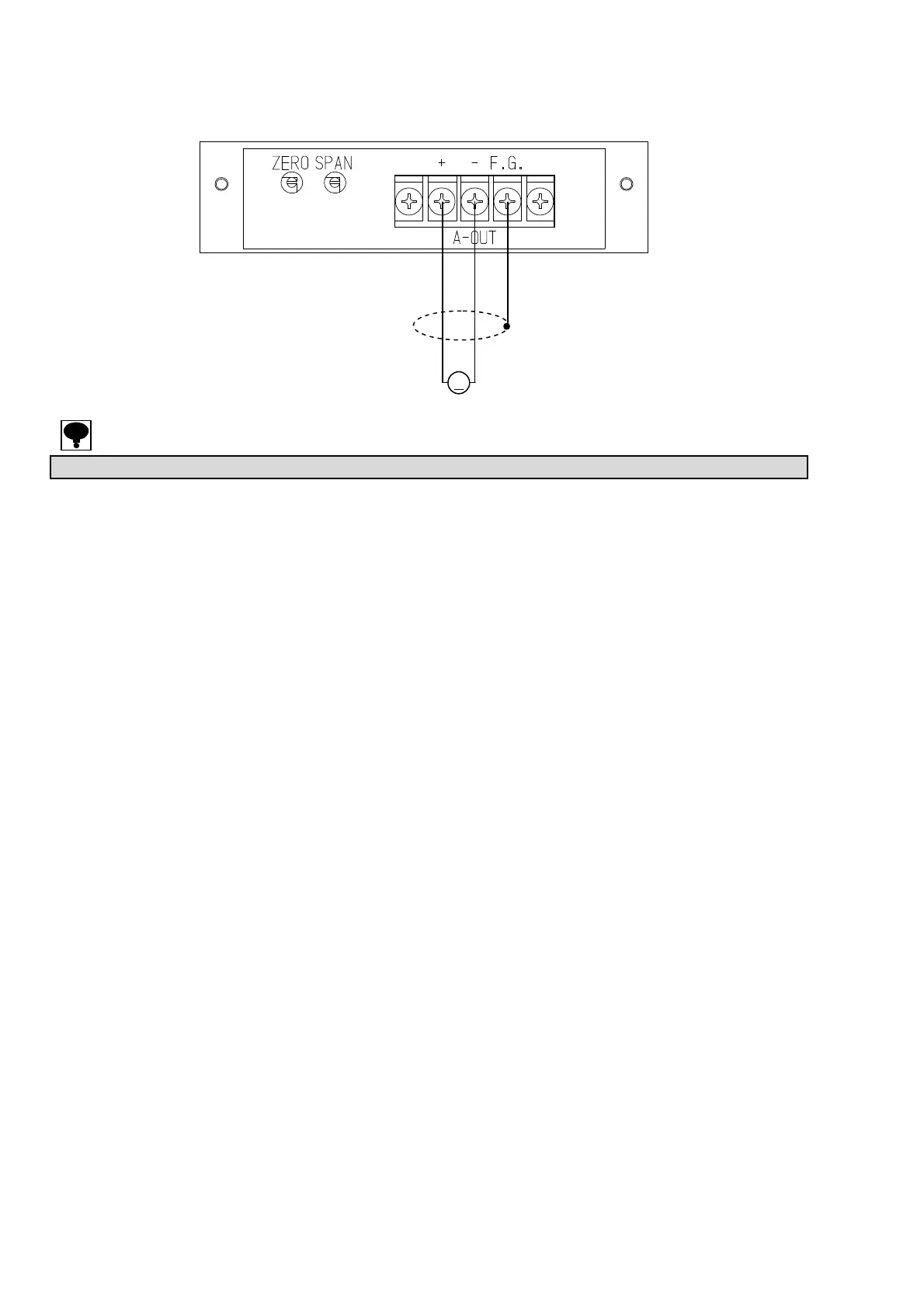

● For the connection with the analog output, be sure to apply the shielded cable and shield should be connected with F.G terminal.
V
Shield
－＋
Load resistance
5 k-ohm or more
