84
13-4. Contact output
13-4-1. Specification of contact output (P/N. CSD904-P43)
Specification Contents
Composition of the
contact point
3 point (1a contact)
Rated load AC250 V or DC30 V
Rated energizing current 3 A (Load resistance)

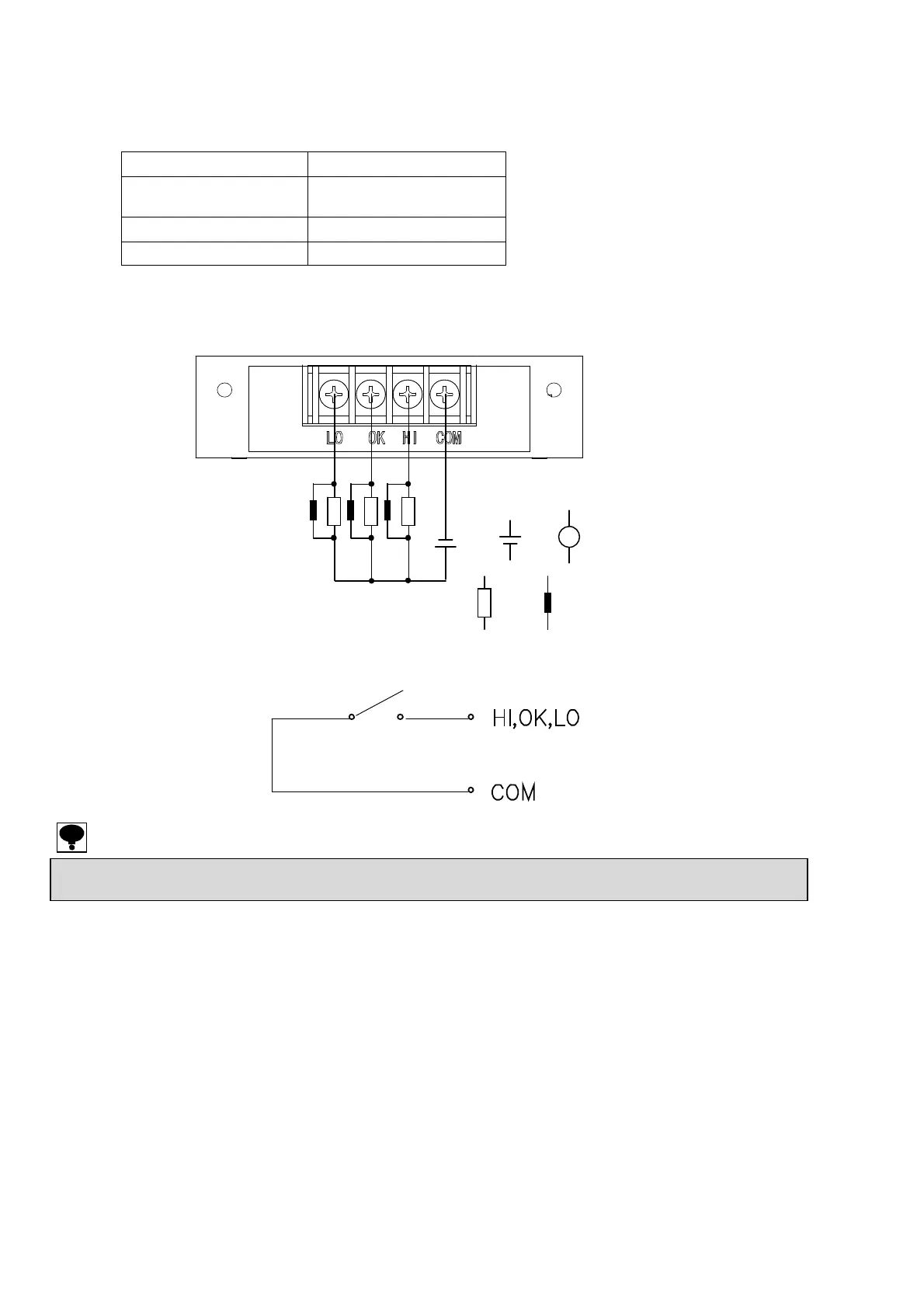

13-4-2. Connection of contact output
Equivalent circuit
● Please connect the serge elimination device suitable for the characteristic of the connected external load for the protection of this contact
point. It causes an unexpected breakdown and the malfunction like the loss and welding etc. of this contact point.
－
＋
Load
or
or
～
Surge elimination device
