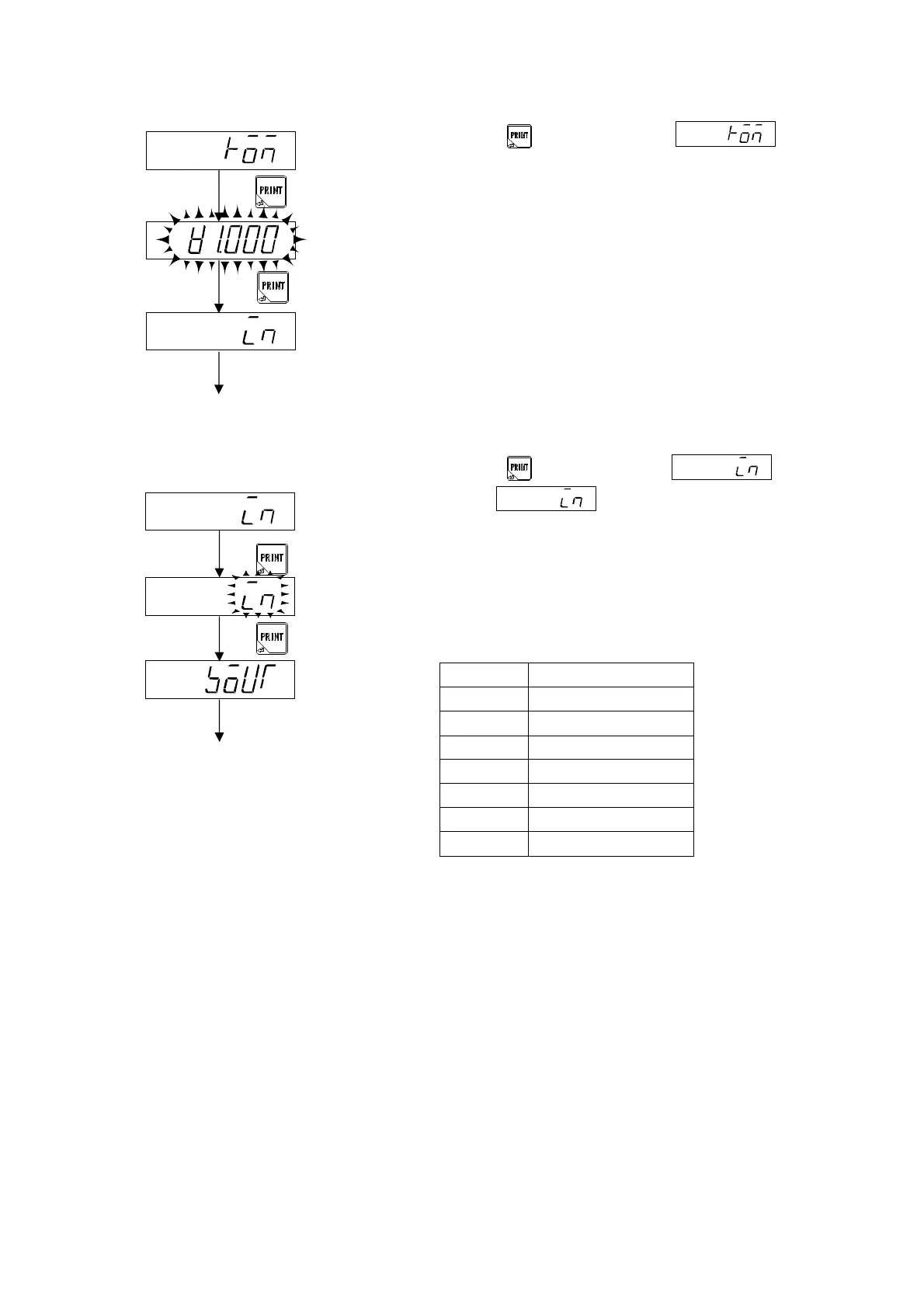

10-2. Confirmation of ROM version
When the key is pressed from
display, ROM version is blinking displayed.
10-3. Confirmation of external control input
When the key is pressed from
display, display becomes blinking.
At this time, the status of ON/OFF of the external
control input signal can be confirmed by the status
display section.
The status display lights when each input of the INPUT
connector is turned on.
Pin No. Status display
1 ACCUM. mark
2 MD mark
3 PT mark
4 TARE mark
5 GROSS mark
6 NET mark
7 ZERO mark
move to the confirmation of
external control input.
move to the confirmation
of contact output.
Confirms by external
input ON/OFF.
