4-5. Digital linearize
After the calibration, the measurement error of some scale interval levels might be caused between the zero
and span (maximum capacity) by the influence of the measuring section etc.
The digital linearization function executes the compensation of three points or less except the zero and span,
and to reduce the measurement error.

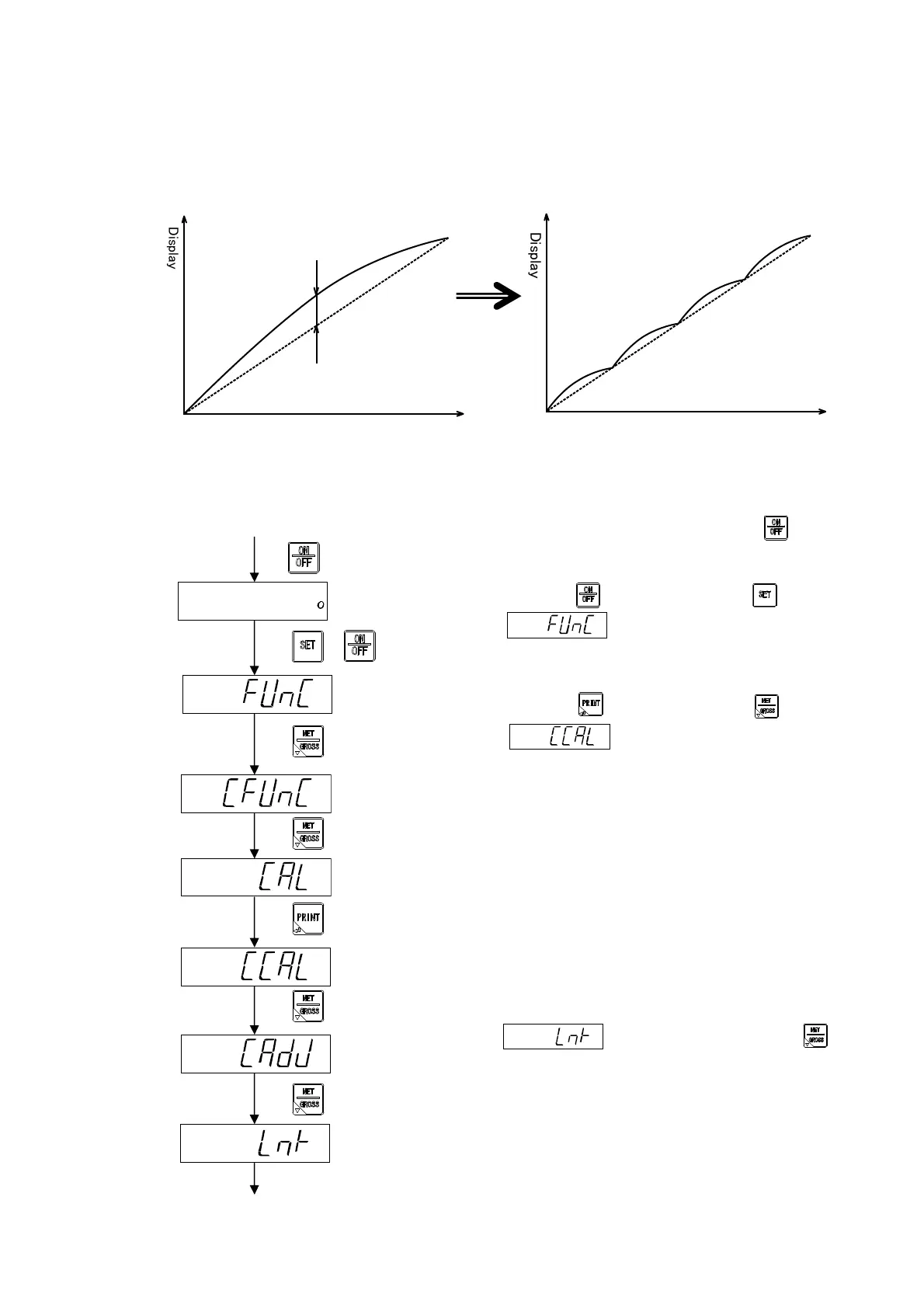

4-5-1. Changeover to digital linearization mode
Make the condition from the normal measurement mode
to
the stand-by condition by pressing the key.
Press the key with pressing the key,
is displayed.
Press the key after pressing the key twice,
is displayed.
is displayed after pressing the
key twice, and enter into the digital linearization mode.
Measurement mode
Stand-by condition
Digital linearization mode
Move to the digital linearization mode.
＋
D
i
s
p
l
a
y
D
i
s
p
l
a
y
Value of weights
Error
Span
0
Zero
Value of weights
0
Zero
Span
Compensation point 3
Compensation point 2
Compensation point 1
Before the compensation of linearization After the compensation of linearization
