2. Product presentation
MiR1000 User Guide (en) 12/2020 - v.1.4 ©Copyright 2019-2020: Mobile Industrial Robots A/S. 16
Nameplate
Every MiR application is delivered with a nameplate that must be mounted to the robot. The
nameplate of MiR1000 identifies the application model and serial number and includes the
CE mark, the technical specifications, and the address of Mobile Industrial Robots. The
nameplate identifies the complete MiR application, for example, a robot with a top module.
It is the responsibility of the commissioner to mount the nameplate on the application—see
Mounting the nameplate on page 53.

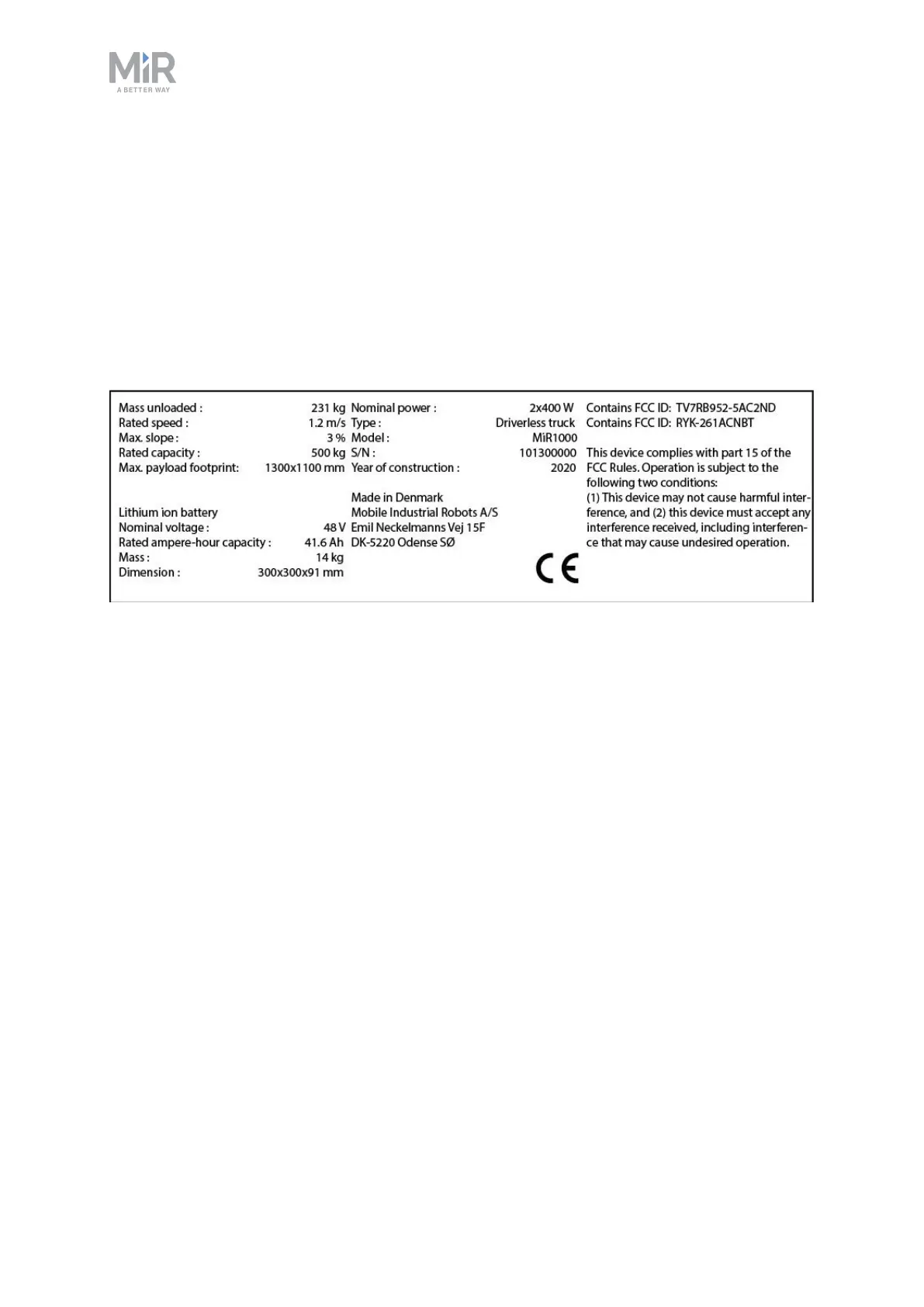

Figure 2.4. Example of a MiR1000 nameplate.
Control panel
MiR1000 has a control panel in the rear-left corner of the robot.
