2. Product presentation
MiR1000 User Guide (en) 12/2020 - v.1.4 ©Copyright 2019-2020: Mobile Industrial Robots A/S. 24

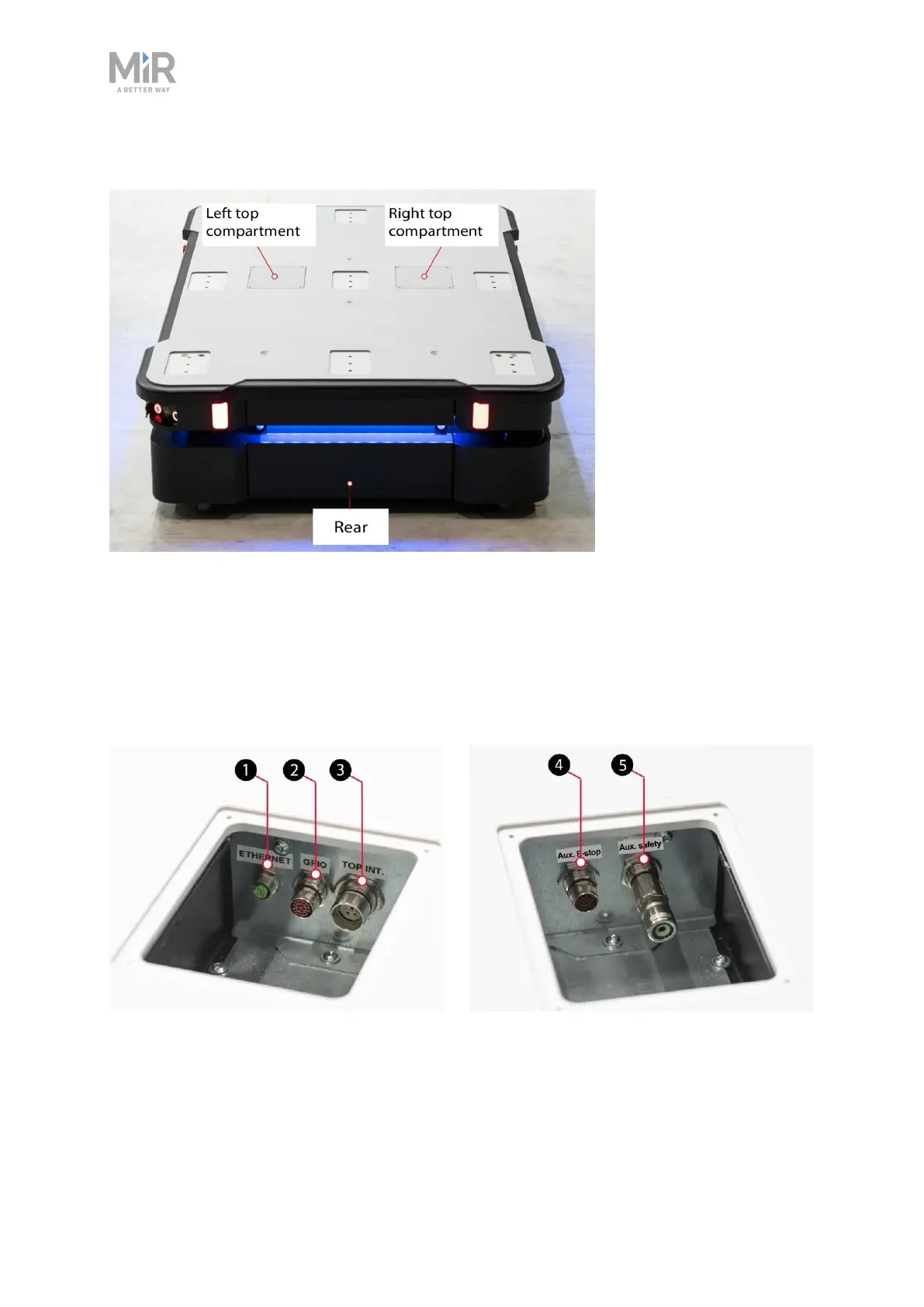

Figure 2.9. The top compartments on the robot.
Top compartment components
The top compartments interfaces are listed in Table 2.4. For detailed information on
electrical interfaces, see Interface specifications on page 190.
Figure 2.10. Interfaces in the top compartments.
