4.0 System Components
4.1 Main Fire Control Panel

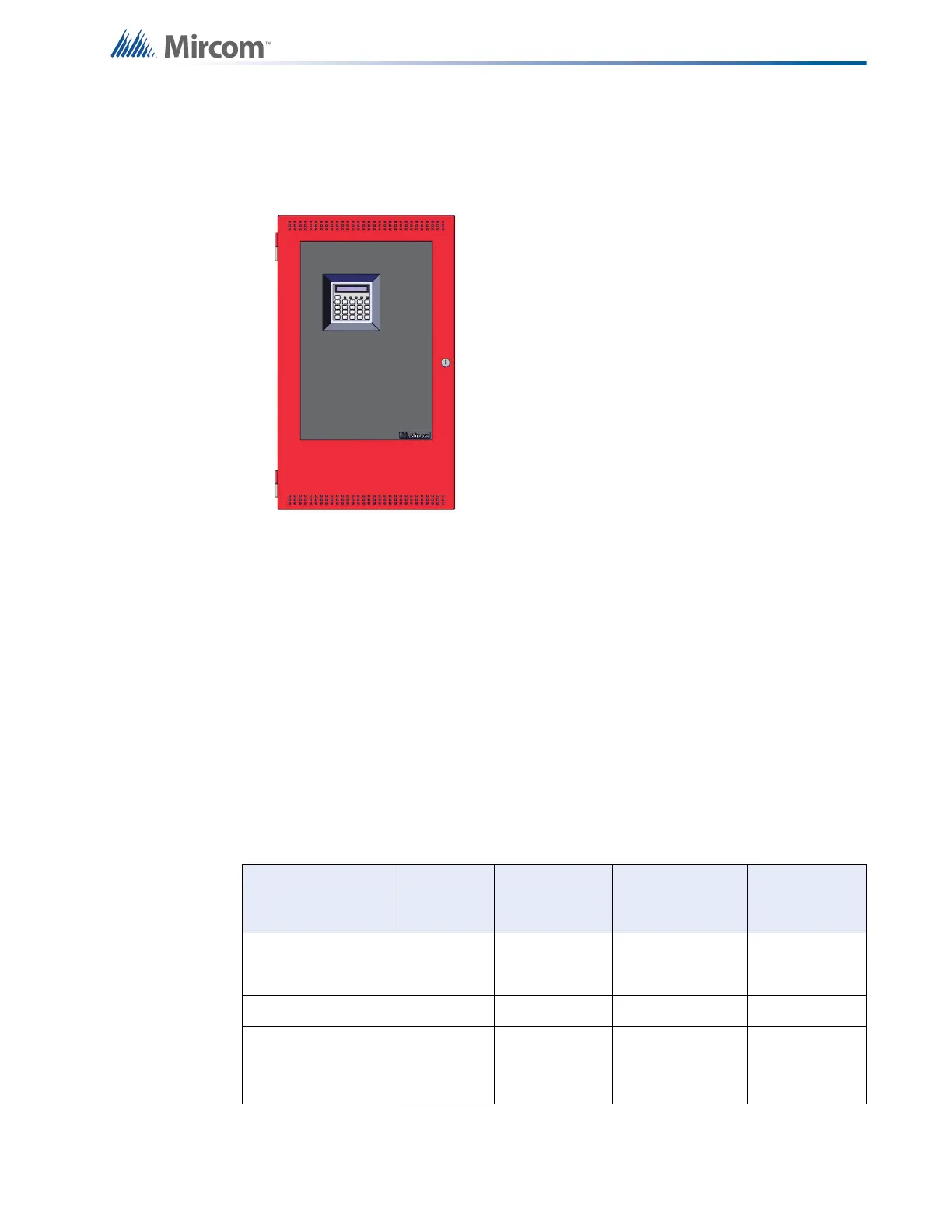

Figure 1 FA-300 LCD
All FA-300 LCD series panels have the following features:
• LCD display
• Two six-zone ICAC-306 Input Class A converter adder modules may be used for
Class A (Style D) wiring of Initiating circuits.
• One OCAC-304 Output Class A converter adder module may be used for Class A
(Style Z) wiring of the indicating circuits.
• Common alarm, common supervisory and common trouble relays, auxiliary alarm relay
(disconnectable), an RS-485 interface for Remote Annunciators and a resettable four
wire smoke detector power supply.
• Used with BA-110 (10 Ah) (Sota Enertech model SA12120) batteries (two required).
Table 1 FA-300 LCD Series Comparison Chart
Model Number of
zones
Number of
initiating
circuits
On board Dialer Door Color
FA-300-6DDR 6 6 y red
FA-300-6DR 6 6 n red
FA-301-12DDR 12 12 y red
FA-300-6DDR-CG
Marine Fire Alarm
Control Unit
66 y red
