Connections, DIP Switches, and Jumpers
6.1.1 Connectors and Jumpers on the Main Fire Alarm Board
6.2 ICAC-306 Input Class A Converter Adder Module

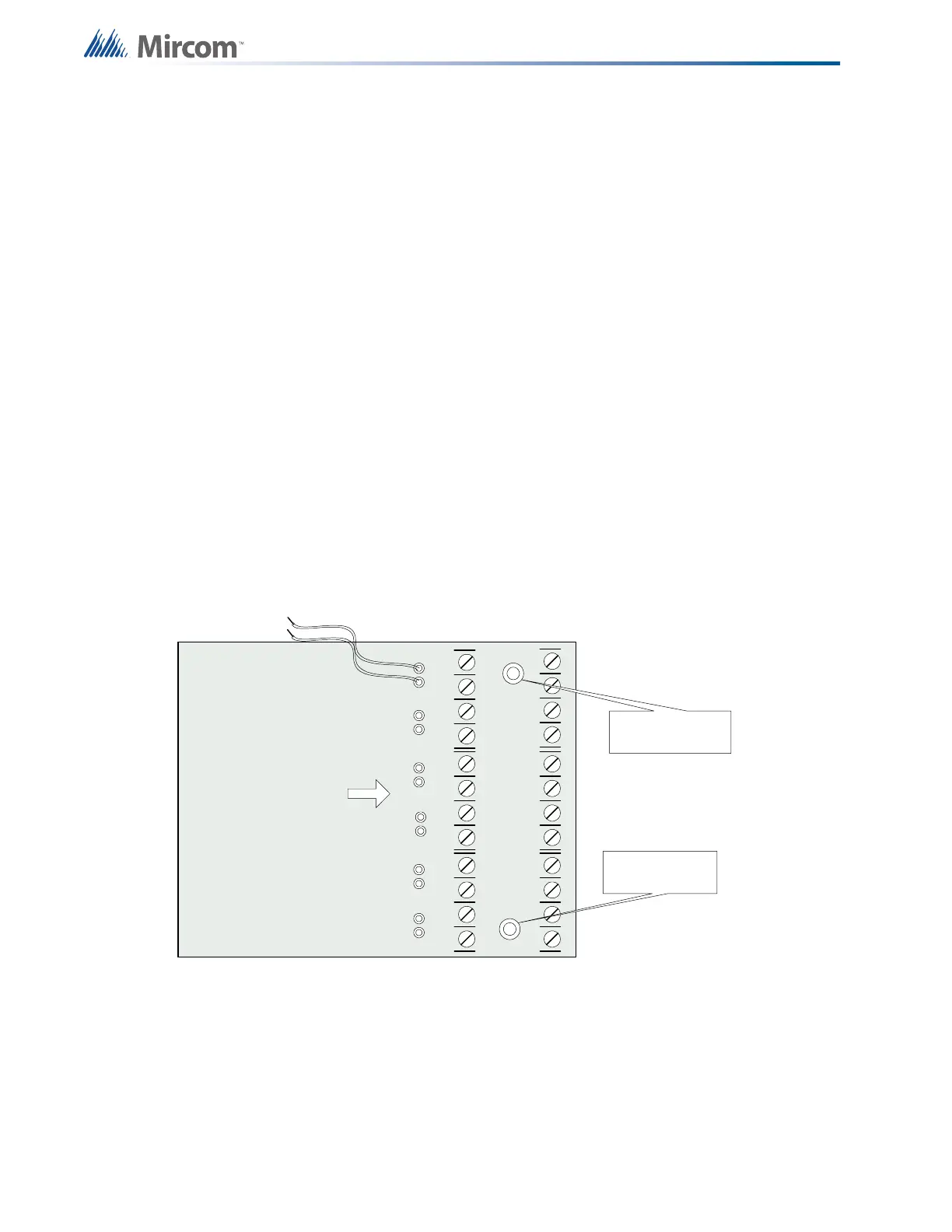

Figure 10 ICAC-306 Input Class A converter adder module
There are no jumpers or cables to set on this module, just wiring from the converter (wires are
fixed here) to the Main Fire Alarm Board.
Initiating circuits must be wired from the ICAC-306 module to the Main Fire Alarm board. For
example, Initiating circuit 1 positive (red) and negative (black) wires are connected to the
positive and negative terminals (respectively) of Initiating circuit 1 on the Main Fire Alarm
Board. From the ICAC-306 converter Initiating circuits are wired out to the devices from the
P5 Cable from P1 of the PR-300 polarity reversal and city tie module connects here.
Otherwise not used.
P6 Cable from connector P1 of the RM-312 or RM-306 relay adder module connects
here. Otherwise not used.
JW1
Remove this jumper if a PR-300 polarity reversal and city tie module is installed.
JW2
Remove this jumper if an RM-312 or RM-306 relay adder module is installed.
JW3
Removed all the time.
JW4 Normally open. Place jumper here and power down (AC and batteries) then power
back to restore the default passcode (1111). After the system restarts, remove the
jumper from JW4.
JW5 Normally open to prevent configuration with a modem, a PC with a UIMA
converter module, or a CFG-300 configuration tool. Place a jumper here to allow
any type of configuration.
JW6
Not used, open.
JW7
Not used, open.
BLK RED
BLK REDBLK REDBLK REDBLK REDBLK RED
- DET1 OUT+- DET2 OUT+- DET3 OUT+- DET4 OUT+- DET5 OUT+- DET6 OUT+
- DET1 RET+- DET2 RET+- DET3 RET+- DET4 RET+- DET5 RET+- DET6 RET+
mounting hole for
#6-32 screws
All these pins comes with
red and black wires which
are connected to the
detection circuit on the
main fire alarm board. Red
is positive and black is
negative
ICAC-306
mounting hole for
#6-32 screws
