28 TX3 Telephone Access System Installation and Operation Manual Version 5.4

Enclosure Installation

The Universal enclosure mounts inside the wall with or without the Universal

Series Flush Trim Ring TX3-USFT. The Trim Ring houses the universal series

enclosure as shown in figure 4

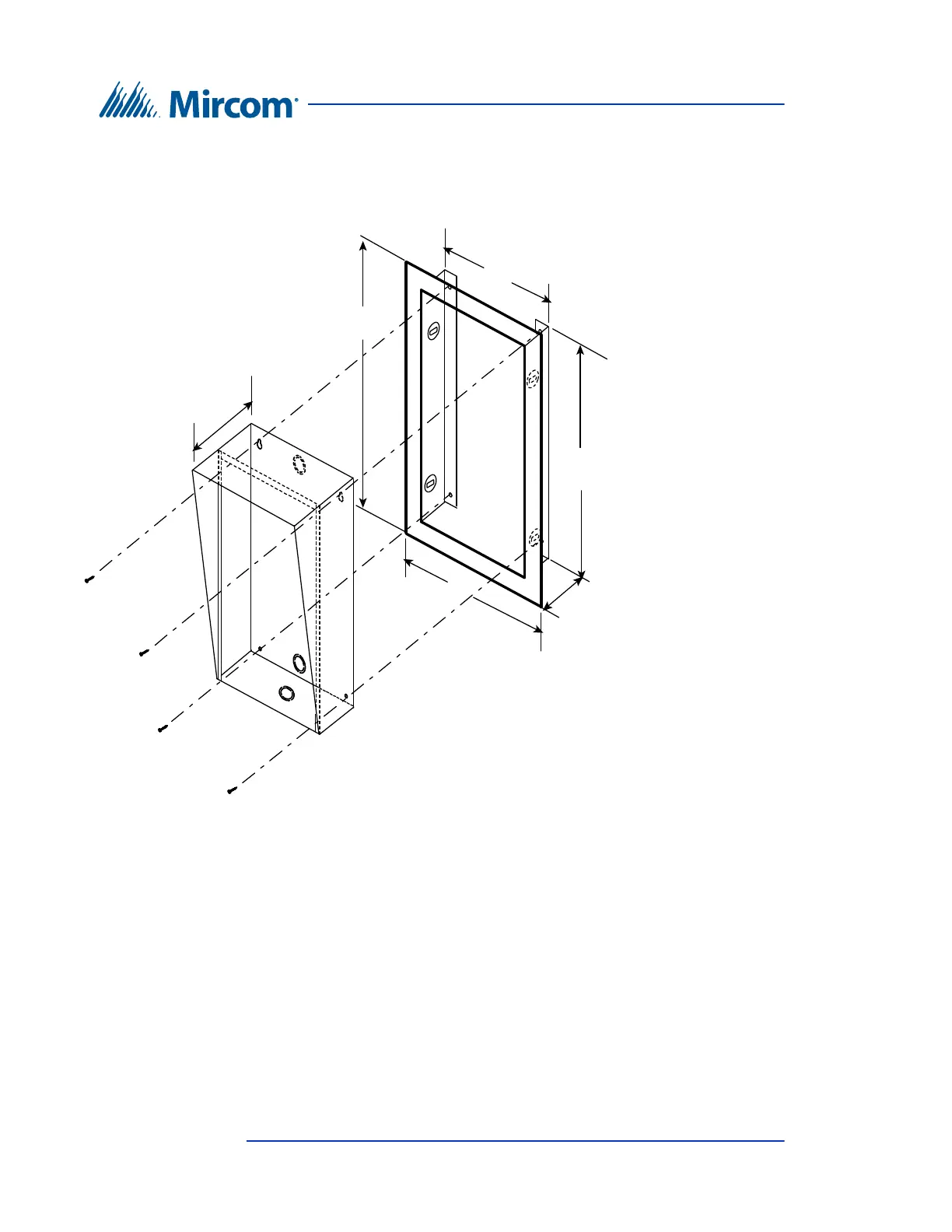

Figure 4. TX3-USFT Slim Line Universal Flush Trim Ring

To install the Universal Slim-line enclosure with or without the Flush

Trim Ring

1. Follow the instructions in section 2.2.1 on page 23 using the Universal

Slim-line enclosure.

UNIVERSAL SLIM

LINE ENCLOSURE

TX3-USFT SLIM LINE

SEMI-FLUSH TRIM

6 13/32 "

7/8"

16 1/4"

5/8"

2 3/4"

4 1/2 "

Dimension of the Universal Slim Line Enclosure

without the flush trim is:

16.25” H x 6.4”W x 2.75“D at bottom, 3” D at top
