Lobby Control Unit Setup

Version 5.4 TX3 Telephone Access System Installation and Operation Manual 57

4.3 Controller Board Connectors - Top

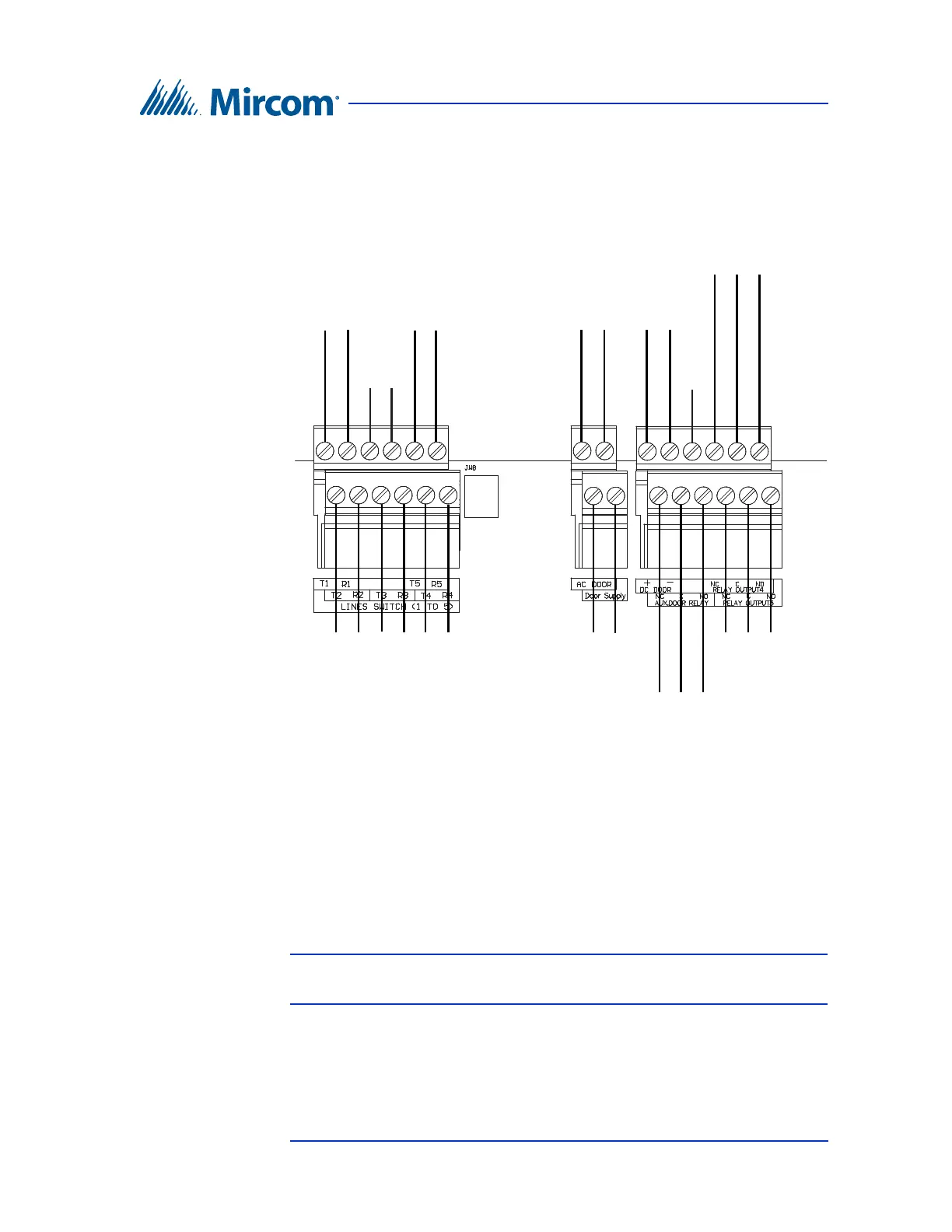

Figure 34 shows the connectors at the top of the controller board.

Figure 34. Controller Board Connectors - Top

4.3.1 Telephone Lines 1 to 5

The telephone lines are situated at the top left of the main controller board.

Both NSL and ADC lines can be connected. Each T/R line is polarity insensitive

and can be reversed.

Note: Non-configurable PBX systems are not supported. For more

information, contact technical support at Mircom.

Line 1

T R

Line 2

T R

Line 3

T R

Line 5

T R

Line 4

T R

Door Strike

AC or DC

Input Door

Strike Supply

DC Output 1

Door Strike

General Relay

Output 4

Unused

JW8

NC C NO

General Relay

Output 3

Unused

NC C NO

Aux. Door

Output 2

Relay
