3.7 Lobby Control Unit Wiring

All units use the PS-4P transformer for the power supply. All wiring is a

maximum length of 1000 ft. The door strike power supply depends on the door

strike power requirements.

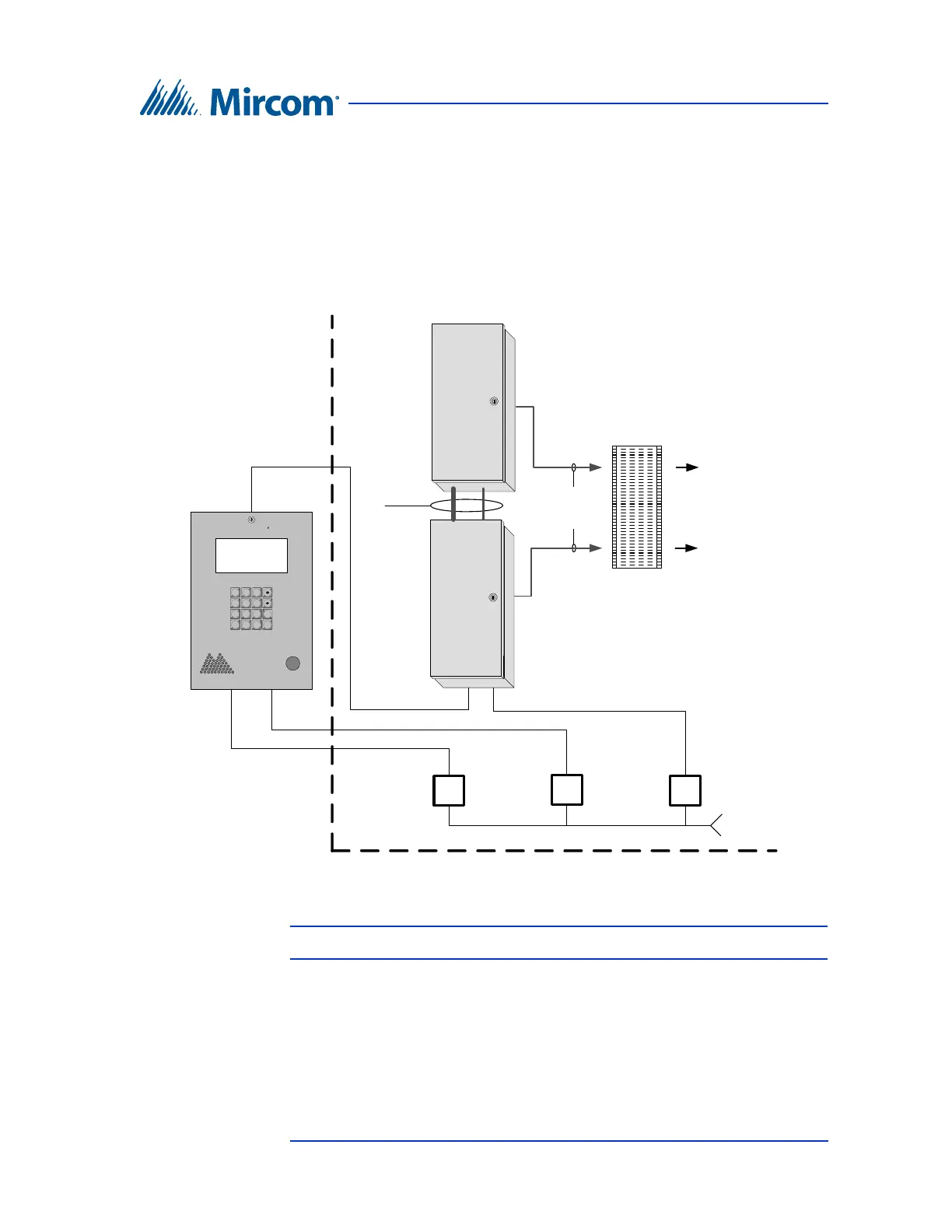

Figure 26 shows a typical wiring arrangement for the Lobby Control Unit.

Figure 26. Lobby Control Unit Wiring

Note: Install all transformers outside the Lobby Control Unit enclosure.

9106/

9406

Cables

2008/16

NSL Expander

Unit

1 2 3

4 5 6

7 8 9



* 0 # i

Resident’s

Telephone

company

CA-71A

RJ-71C

Blocks

Electrical room

Power

transformer

16VAC/40VA

PS-4 or PS-4P

Power

transformer

AC or DC Door

strike supply

T/R

120 VAC

60HZ

TX3-NSL-8M

NSL Control

Unit

Power

transformer

16VAC/40VA

PS-4 or PS-4P

T/R

Line1

Expansion

cables
