TX3 System
• it must have a TX3-IP IP Module installed, if it is not a
Touch Screen.
Figure 25 shows a configuration with TX3 devices connected on both an
Ethernet TCP/IP network and on RS-485 subnetworks. Devices connected to a
Master Node’s RS-485 subnetwork are Slave Nodes to the Master Node. Each
RS-485 subnetwork can have up to 63 devices connected to it; you can still have
more than 63 Master Nodes connected to the Ethernet network.

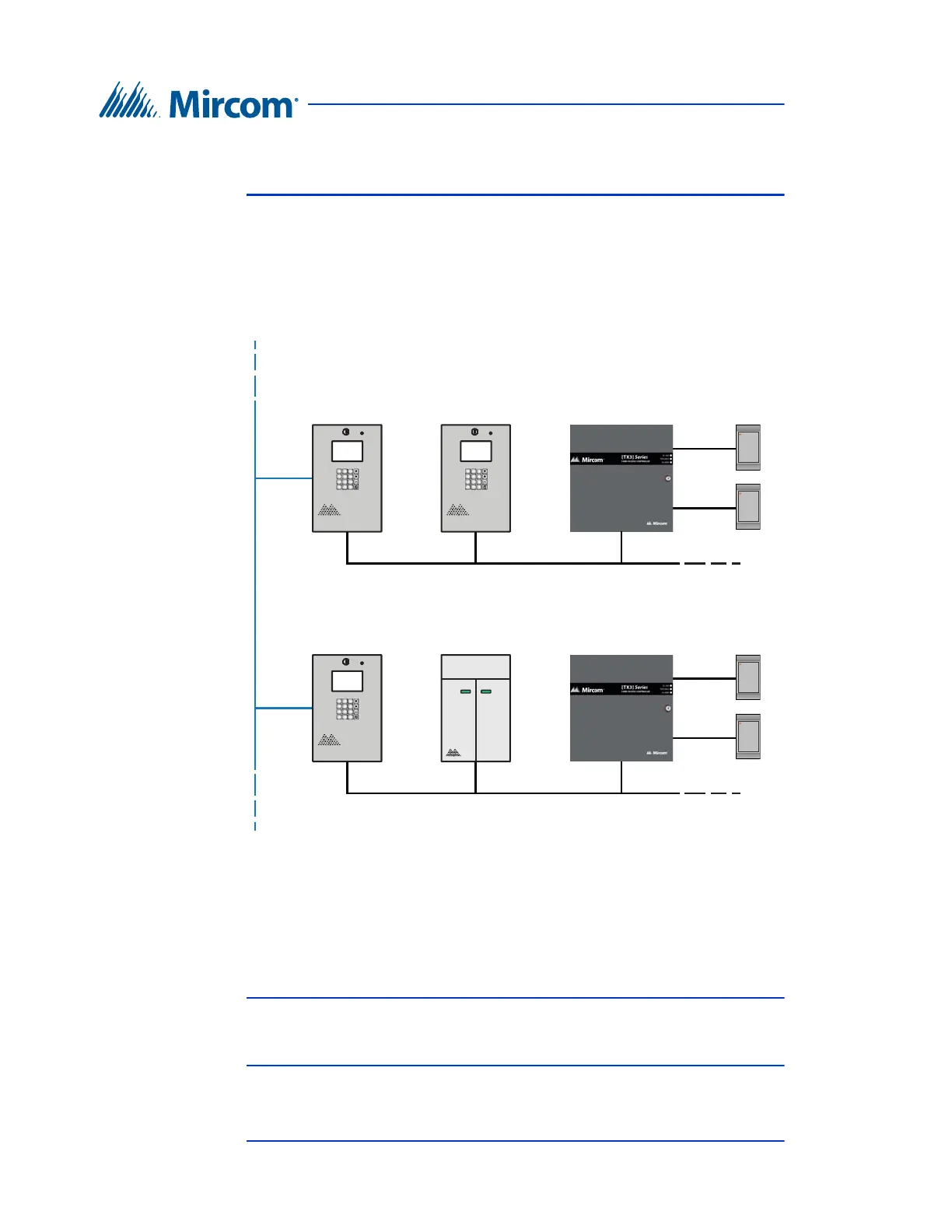

Figure 25. Lobby control units using both Ethernet and RS-485 networks
If you connect to the Ethernet TCP/IP network with the TX3 Configurator, you
can configure any of the nodes in this configuration. If you connect directly to a
device using USB, a modem, or a COM port, you will only be able to configure
devices that are on the same RS-485 subnetwork as that device.
Note: There can only be one Master Node on an RS-485 subnetwork. That
is, you cannot connect one RS-485 subnetwork to another RS-485
subnetwork.
