Enclosure Installation

Version 5.4 TX3 Telephone Access System Installation and Operation Manual 35

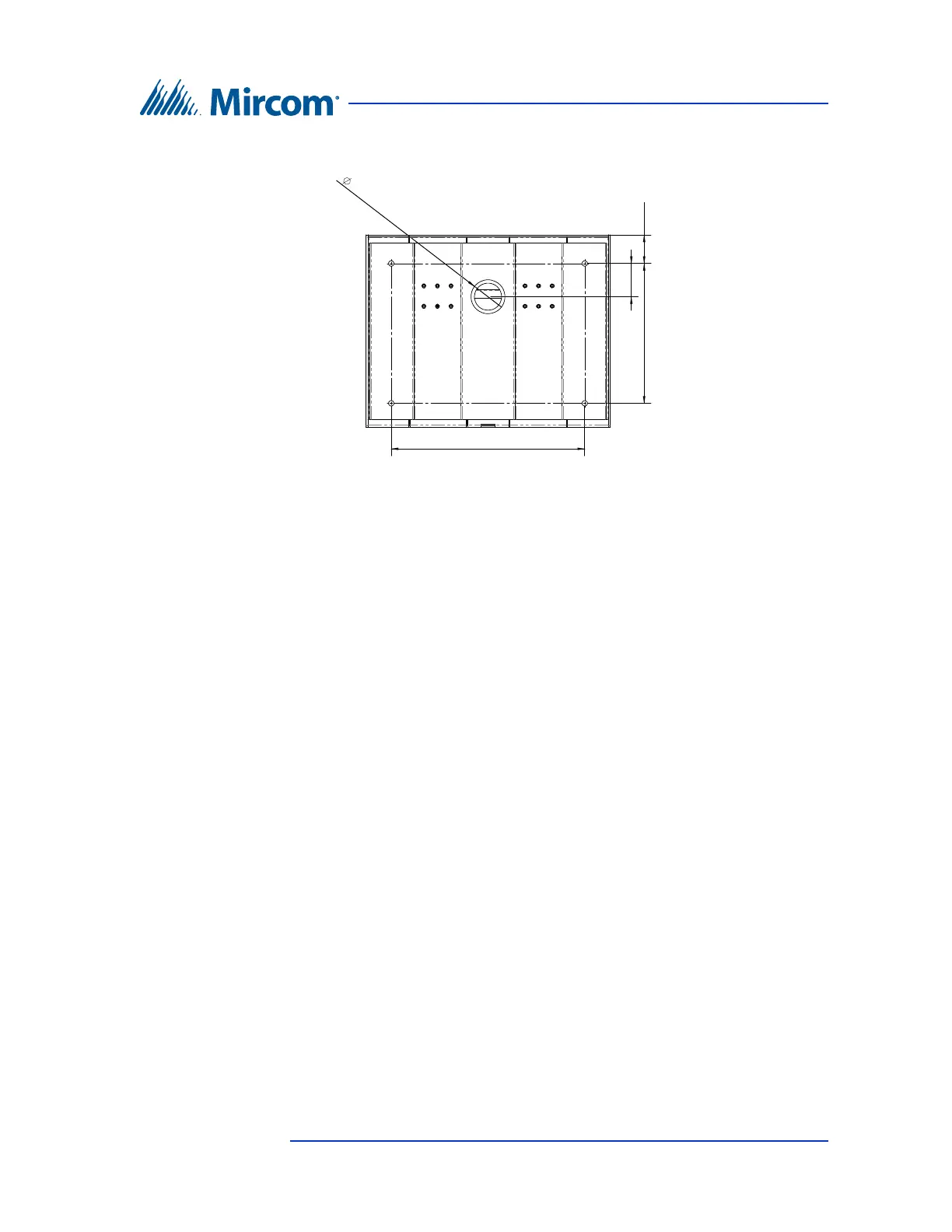

Figure 13 shows the dimensions of the base plate.

Figure 13. Base Plate Dimensions (inches)

7. Cut an opening in the floor for the electrical and communication cables.

8. Run the wires through the base plate opening.

9. Secure the base plate to the floor using 4 bolts in the base plate mounting

holes shown in figure 12. The holes are 0.406” in diameter.

10.300

14.244

2.500

2.450

2.107
