Enclosure Installation

Version 5.4 TX3 Telephone Access System Installation and Operation Manual 37

2. Secure the Kiosk onto the base plate using the 8 of the 12 base plate bolts

in the holes shown in figure 16.

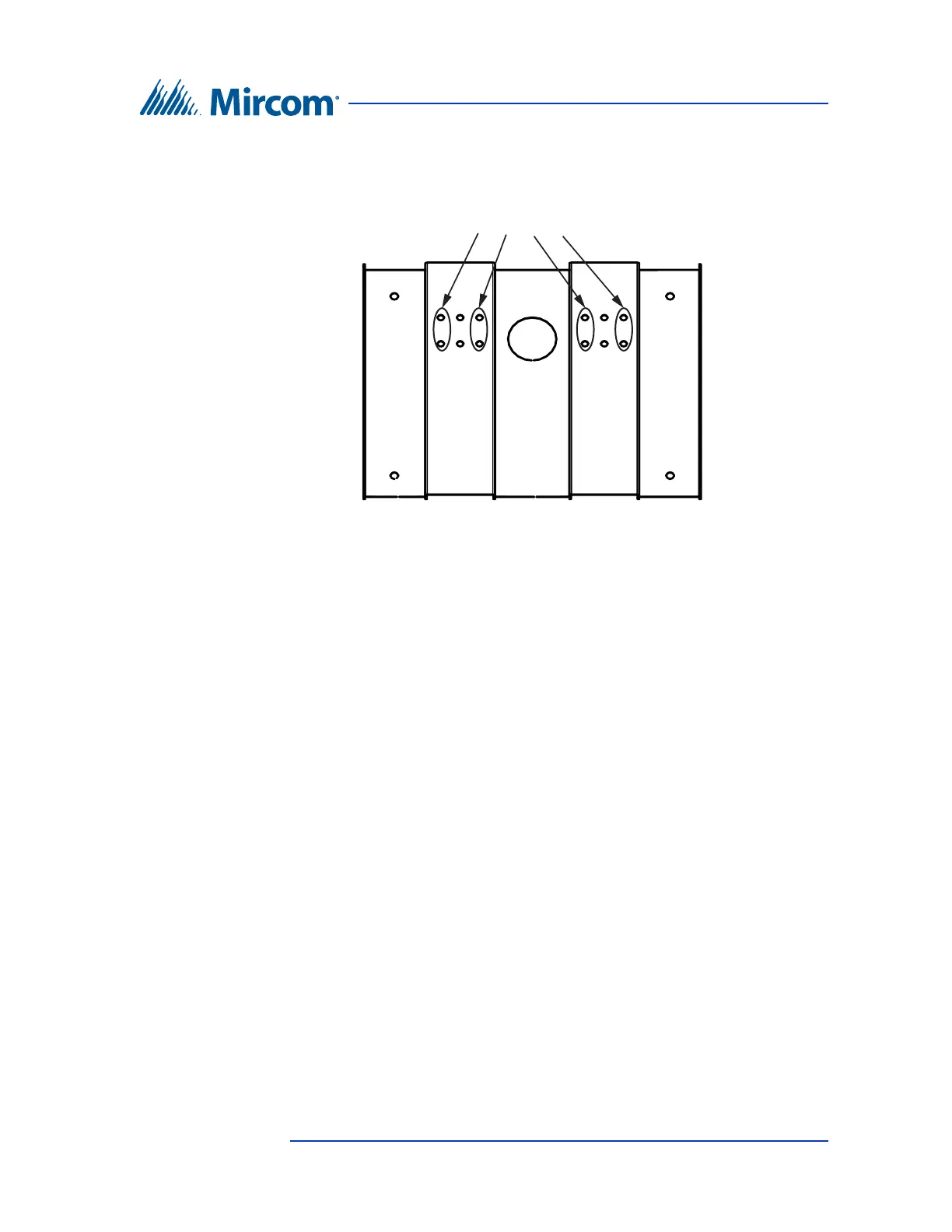

Figure 16. Attach the Kiosk to the base plate

3. Position the reinforcement bracket over the 6 studs on the inside of the

Kiosk, and screw the 6 nuts on to the studs as shown in figure 9.

4. Secure the reinforcement bracket to the base plate using the remaining 4

base plate bolts in the remaining 4 holes in the base plate.

5. Fit the door to the Kiosk.

Attach the Kiosk to the base plate

with bolts in these holes rst
