72 TX3 Telephone Access System Installation and Operation Manual Version 5.4

NSL Relay Cabinet Installation and Wiring

5.2 NSL Relay Control Unit and Expanders

The TX3-NSL-8M NSL Relay Control Unit, TX3-8EC and TX3-16EC NSL

Relay Backplane Expanders perform the following functions:

• Telephone switching functionality to facilitate voice communication

between the resident's phone and the lobby

• Generating call waiting tones to the resident if the line is busy.

• Provide access control by the resident using the telephone keypad.

• Low power operation from one 16V AC transformer.

5.2.1 TX3-NSL-8M NSL Control Unit

The TX3-NSL-8M Relay Control Unit consists of:

• NSL Main Controller Board

• NSL Backplane Board

Figure 41 shows a TX3-NSL-8M Relay Control Unit.

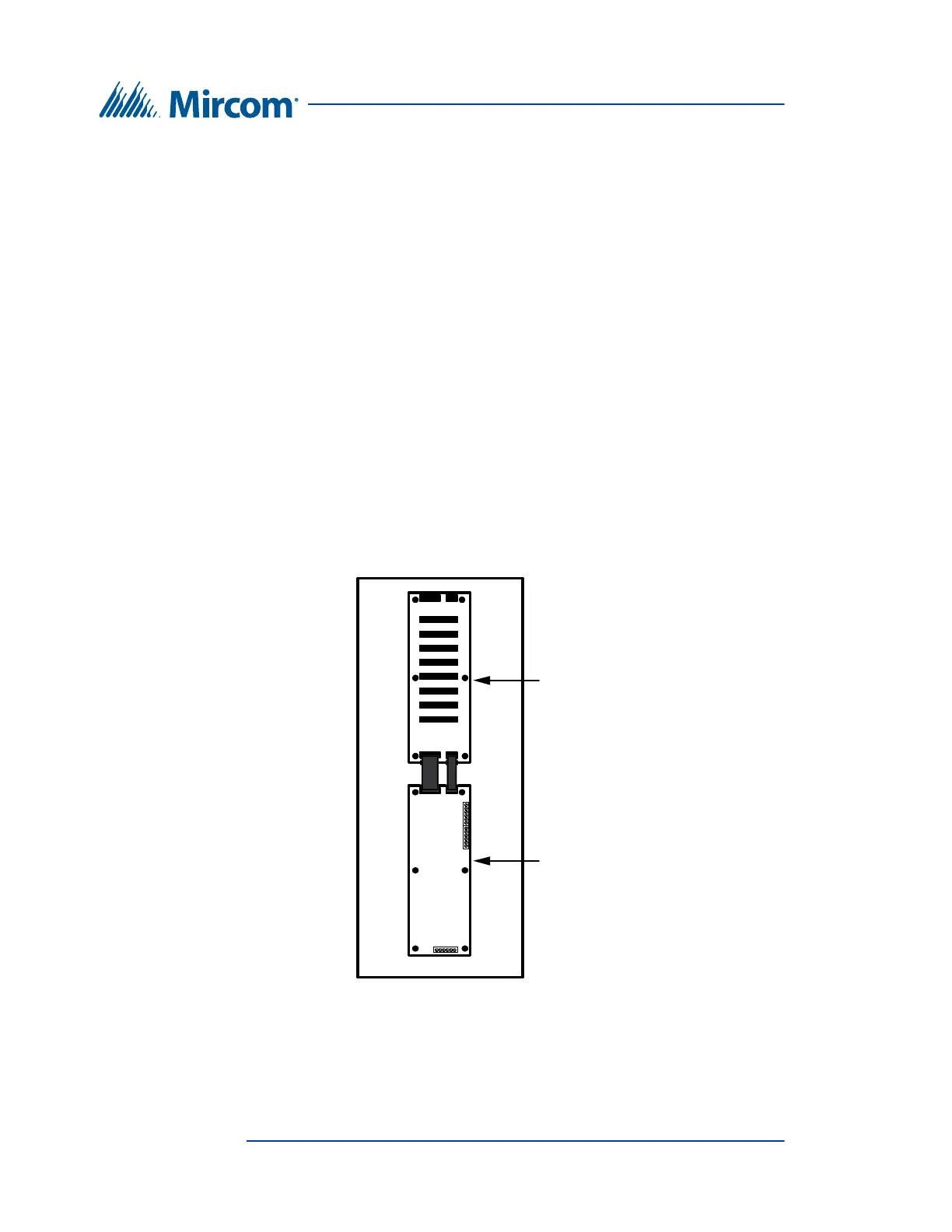

Figure 41. TX3-NSL-8M Relay Control Unit

TX3-NSL-8M Relay Control Unit

NSL Main Controller

NSL Backplane Board
