Enclosure Installation

Version 5.4 TX3 Telephone Access System Installation and Operation Manual 31

2.4 Installing TX3-2000-8K-A

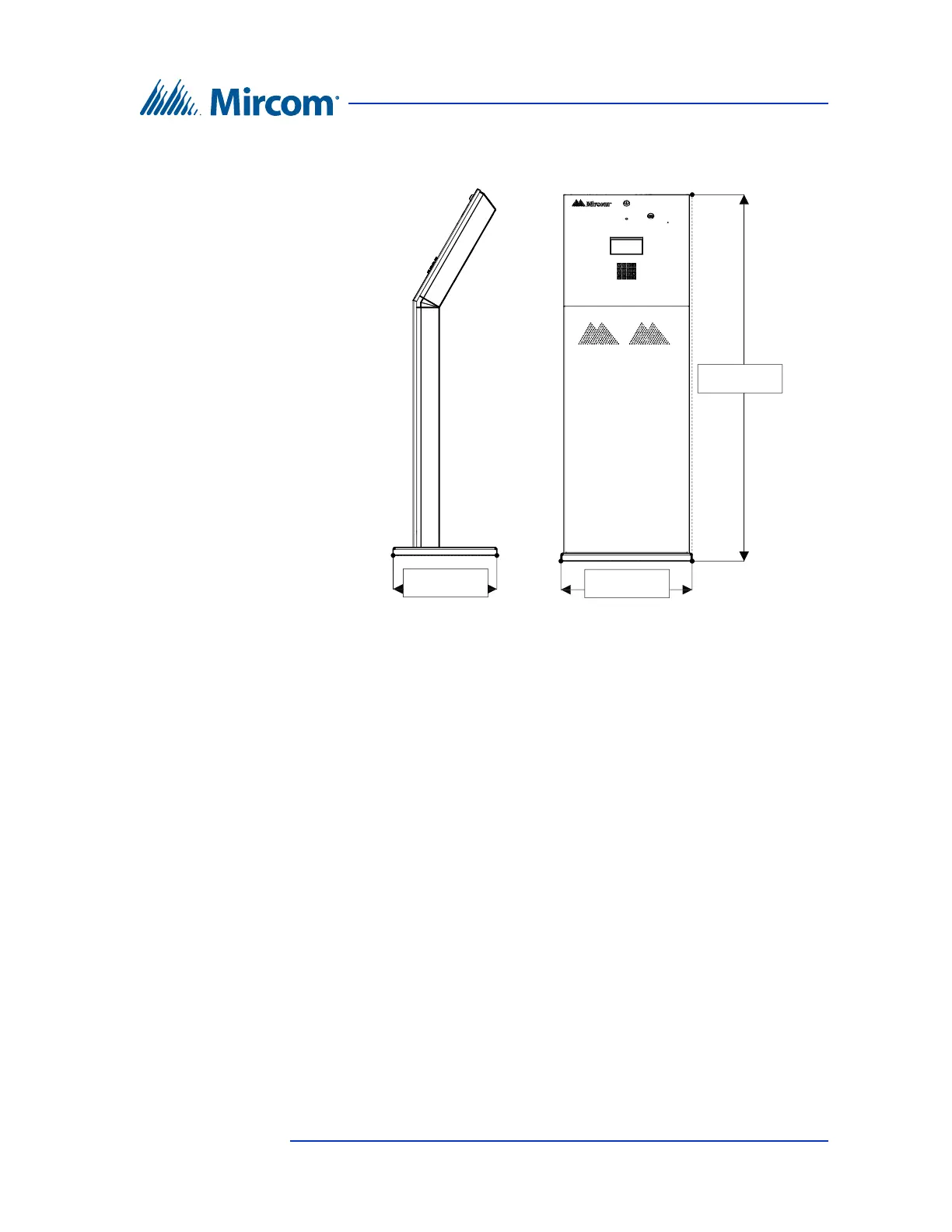

Figure 7. Dimensions of the 8 Line Kiosk (inches)

The Kiosk mounts to the floor inside the building near the entrance, close to the

power source and telephone infrastructure. Access for the power and

communication cables is provided through a cutout in the base plate.

To install the Kiosk you must:

• Remove the reinforcement bracket and the base plate.

• Attach the base plate to the floor, and run the wiring through the base plate

opening.

• Attach the Kiosk to the base plate.

• Attach the reinforcement bracket to the Kiosk.

Follow the instructions below to complete these steps.

You will need:

4 bolts to attach the base plate to the floor. The holes in the base plate are 0.406”

in diameter.

50.117 "

17.950 "

14.187 "
