80 TX3 Telephone Access System Installation and Operation Manual Version 5.4

NSL Relay Cabinet Installation and Wiring

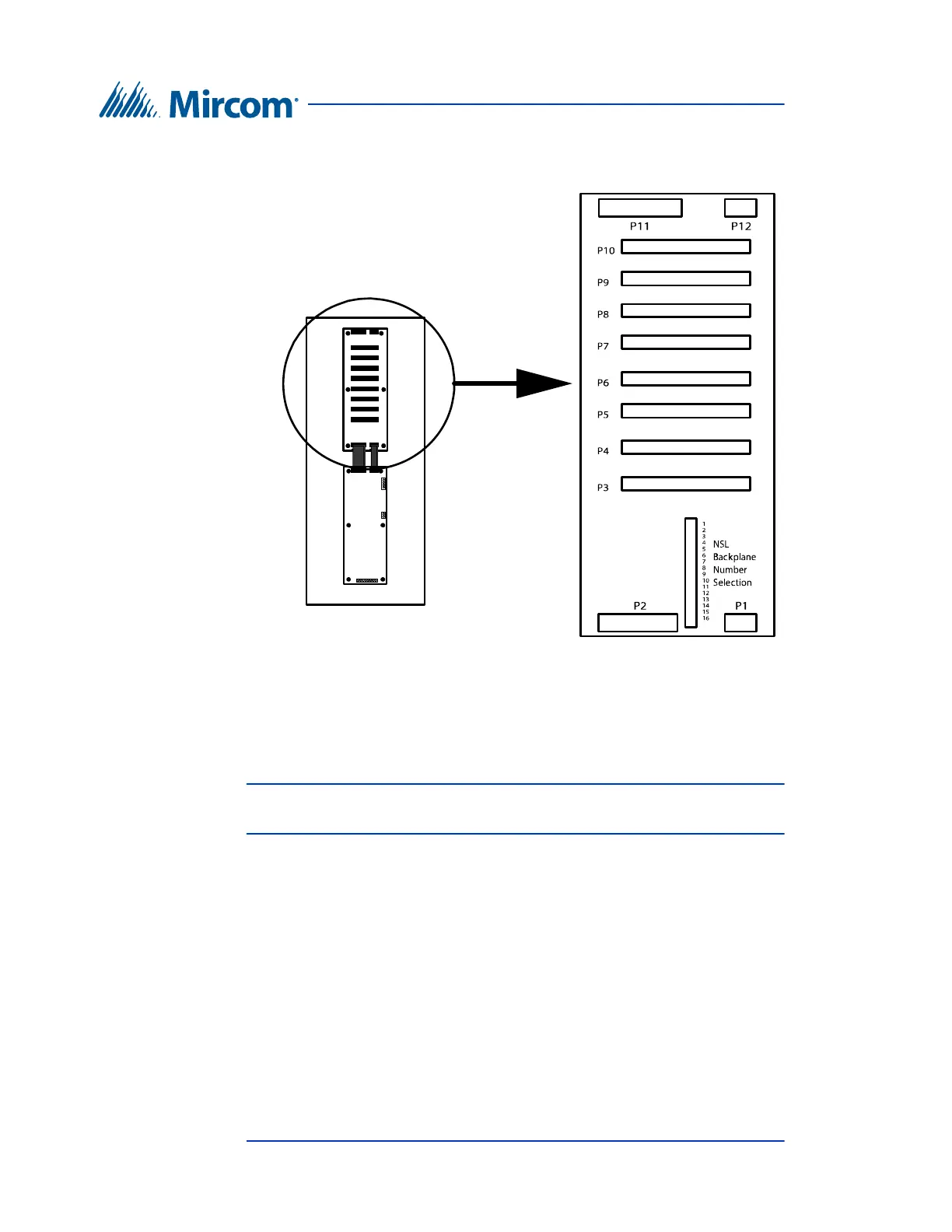

NSL Backplane Number Selector. (located between P1 and P2).

Figure 46. NSL Backplane

Attention: High voltages are present on this board during the ringing of suite

telephones.

5.3.9 Using NSL with Phone Lines that Provide DSL Service

If the building's telephone lines provide both DSL (digital subscriber line) and

POT (plain old telephone) services then the ADSL-100 filter module is required

to filter data signals. This filter module is installed between P4 on the NSL

Controller board and P1 on the first Back Plane board that connects to it. Refer to

the figure below for details on connecting the ADSL-100 module.

2016 NSL Unit Relay Backplane Boards

TX3-NSL-8M Relay Control Unit
