Enclosure Installation
The Universal enclosure mounts inside the wall with or without the TX3-UFT
Universal Series Flush Trim Ring TX3-UFT. This Trim Ring houses the
universal series enclosure as shown in figure 2.

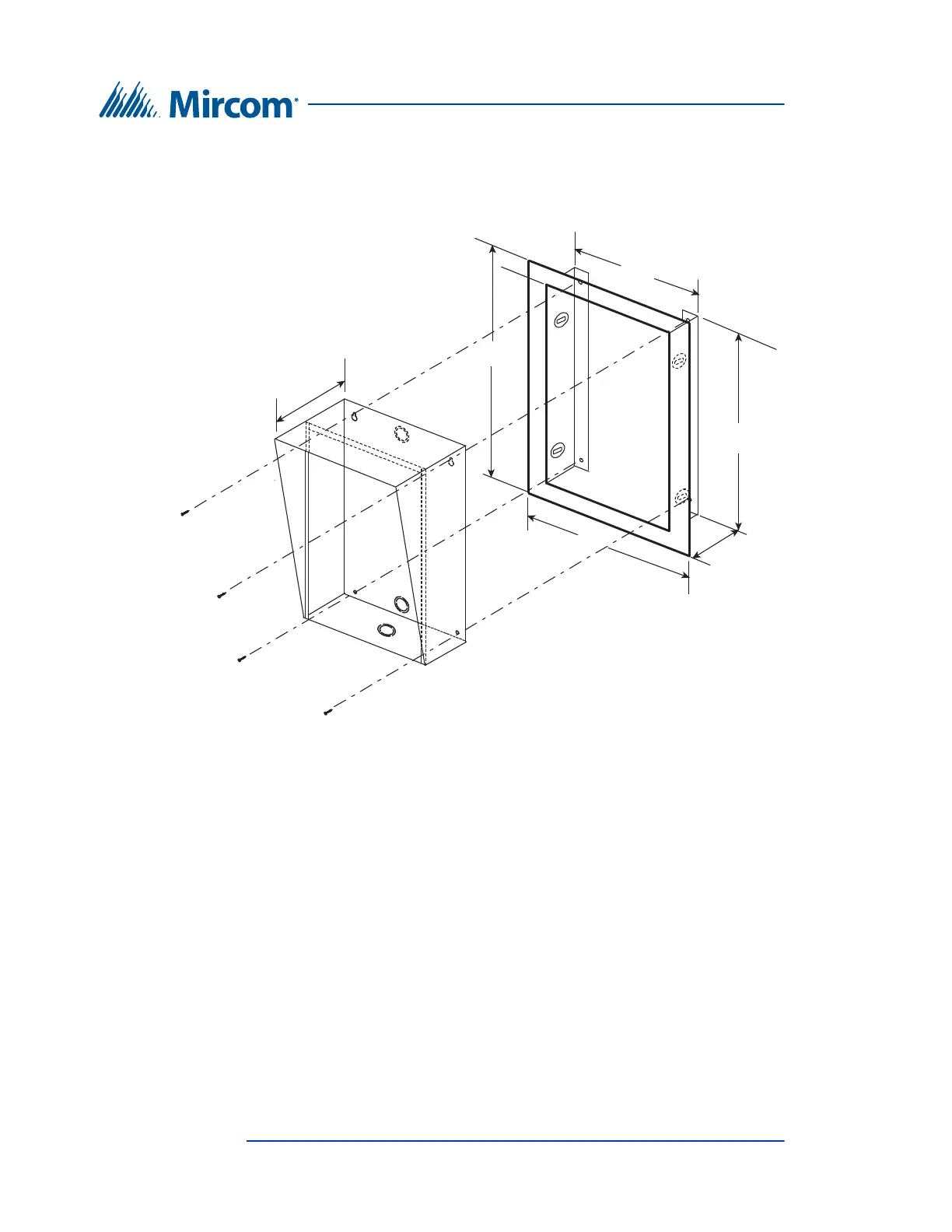

Figure 2. TX3-UFT Universal Series Flush Trim Ring
To install the Universal enclosure with the Flush Trim Ring to the
wall stud
1. Find a suitable location for the enclosure next to a wall stud.
2. Using the enclosure as a template, trace an opening in the wall for the cut
out with one side aligned with the side of the wall stud.
3. Cut an opening in the wall ensuring that one side is aligned with the wall
stud.
4. Using the semi-flush trim ring as a template, insert the trim ring into the
wall cut out and mark the top mounting hole location as shown in figure 2.
Ensure that at least one side is beside a wall stud.
10 5/8"
13 1/8 "
16 3/4”
19 5/8"
2 3/4"
4 1/2 "
Dimension of the Enclosure without
the ush trim.
Cut out in wall should be :
17” H x 10.6”W x 2.75” D at the bottom
3” at the top
Universal
Enclosure
Semi-Flush Trim
TX3-UFT
