TX3 System

Version 5.4 TX3 Telephone Access System Installation and Operation Manual 43

Lobby Control Units 1, 2 and 3 can make simultaneous calls as long as a line is

not in use by another Lobby Control Unit. For example, if Lobby Control Unit 1

uses line1, Lobby Control Unit 2 can use Line 2 and Lobby Control Unit 3 can

use line 3.

When Lobby Control Unit 1 is using line 1 and Lobby Control Unit 2 also wants

to use line1, which is busy, then a line busy message displays on Lobby Control

Unit 2.

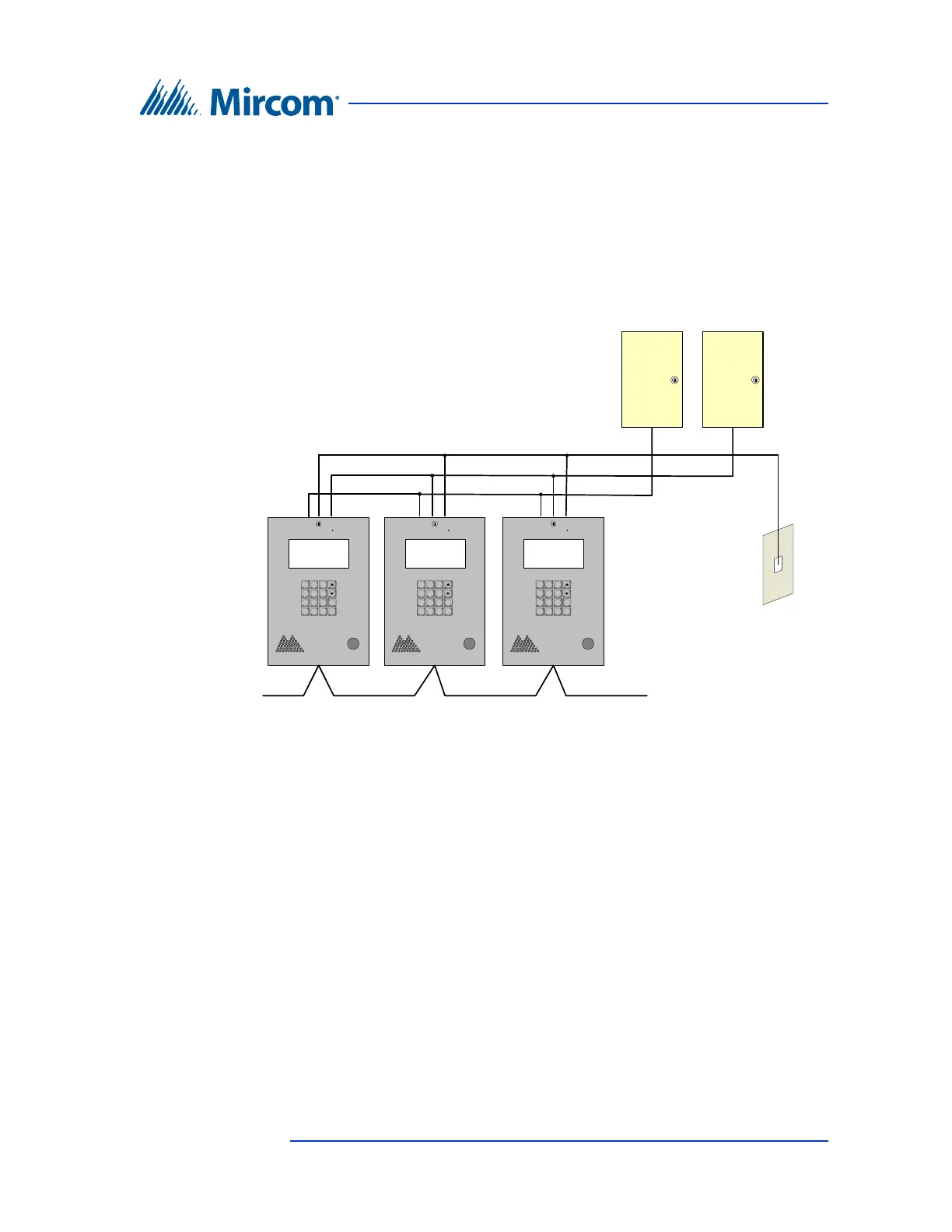

Figure 21. Multiple Lobby Control Units to Multiple Lines

1 2 3

4 5 6

7 8 9



* 0 # i

1 2 3

4 5 6

7 8 9



* 0 # i

1 2 3

4 5 6

7 8 9



* 0 # i

NSL

Control

Unit

NSL

Control

Unit

Line1

Line2

Line3

Telephone outlet

Central office line

RS-485

bus

RS-485 from

previous unit

RS-485 to

next unit

Lobby

control

unit 1

Lobby

control

unit 2

Lobby

control

unit 3

T/R
