70 TX3 Telephone Access System Installation and Operation Manual Version 5.4

NSL Relay Cabinet Installation and Wiring

5.1 NSL Relay Cabinet Mechanical Installation

The NSL Relay cabinets contain the telephone switching equipment and are

typically mounted in the electrical/telephone room of a building.

NSL Relay cabinets are factory assembled in one of the following enclosure

sizes:

• TX3-NSL-8M NSL Unit: 27 inch high enclosure

• TX3-8EC NSL Expander: 13 15/16 inch high enclosure

• TX3-16EC NSL Expander: 27 inch high enclosure

The TX3-8EC NSL Expander includes the 13 15/16 inch enclosure. The TX3-

NSL-8M Relay Cabinet includes the 27 inch enclosure. The TX3-16EC NSL

Expander includes the 27 inch enclosure. See figure 40 and Table 3.

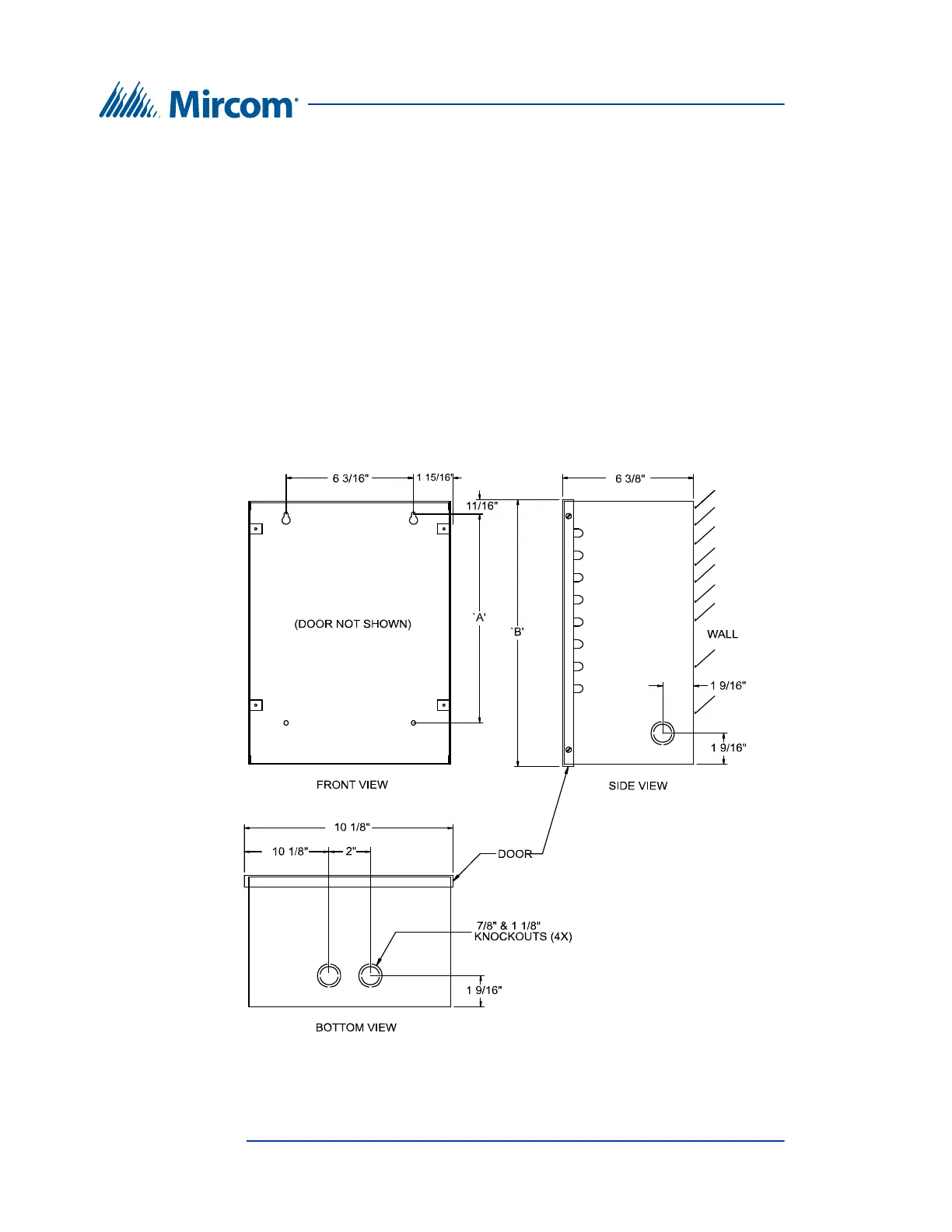

Figure 40. NSL Relay Cabinet
