36 TX3 Telephone Access System Installation and Operation Manual Version 5.4

Enclosure Installation

To fit the Touch Screen Kiosk on the base plate

1. Fit the back lip of the Kiosk into the notches in the baseplate, and tilt the

Kiosk forwards so that it rests on top of the base plate.

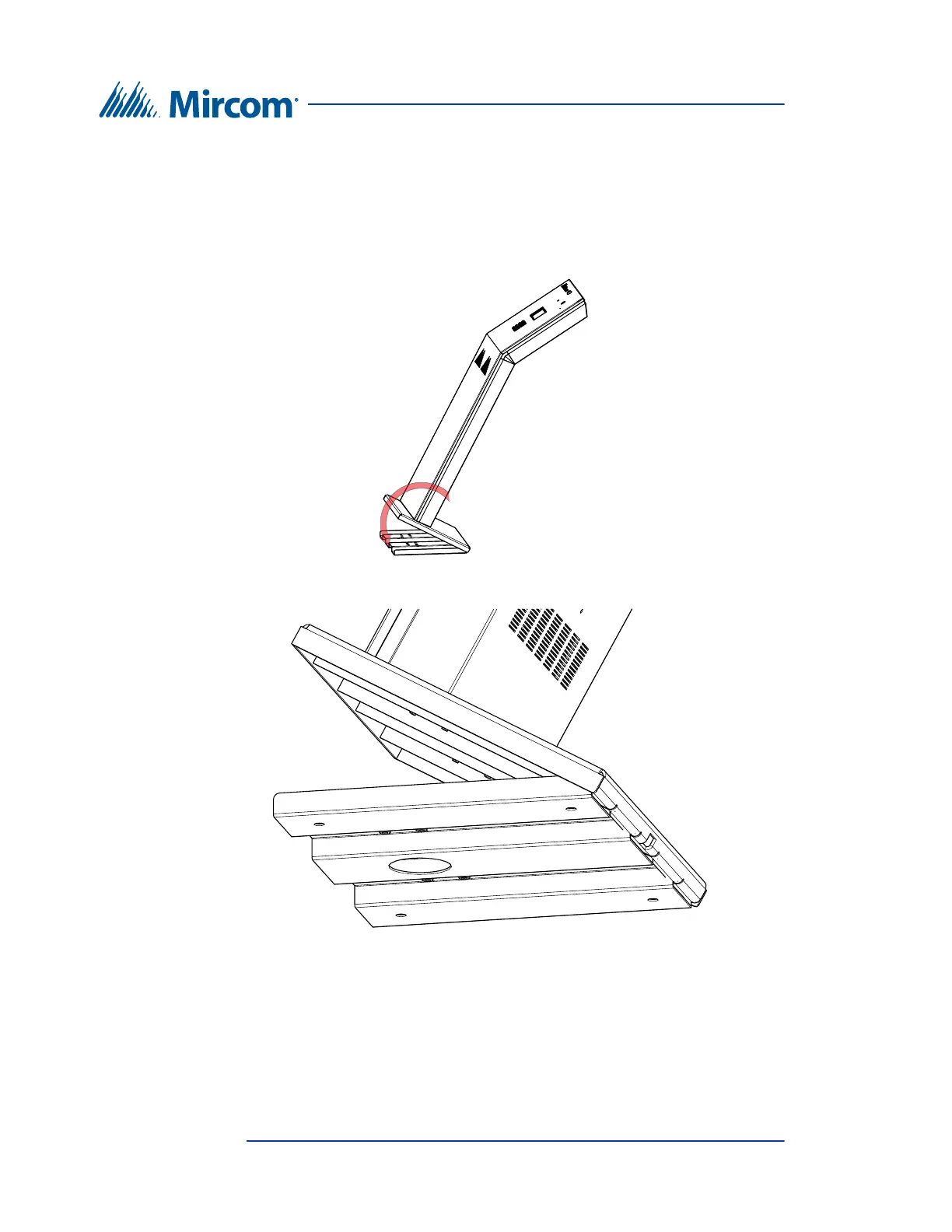

Figure 14. Fitting the Kiosk on the Base Plate

Figure 15. Fitting the Kiosk on the Base Plate (from below)
