34 TX3 Telephone Access System Installation and Operation Manual Version 5.4

Enclosure Installation

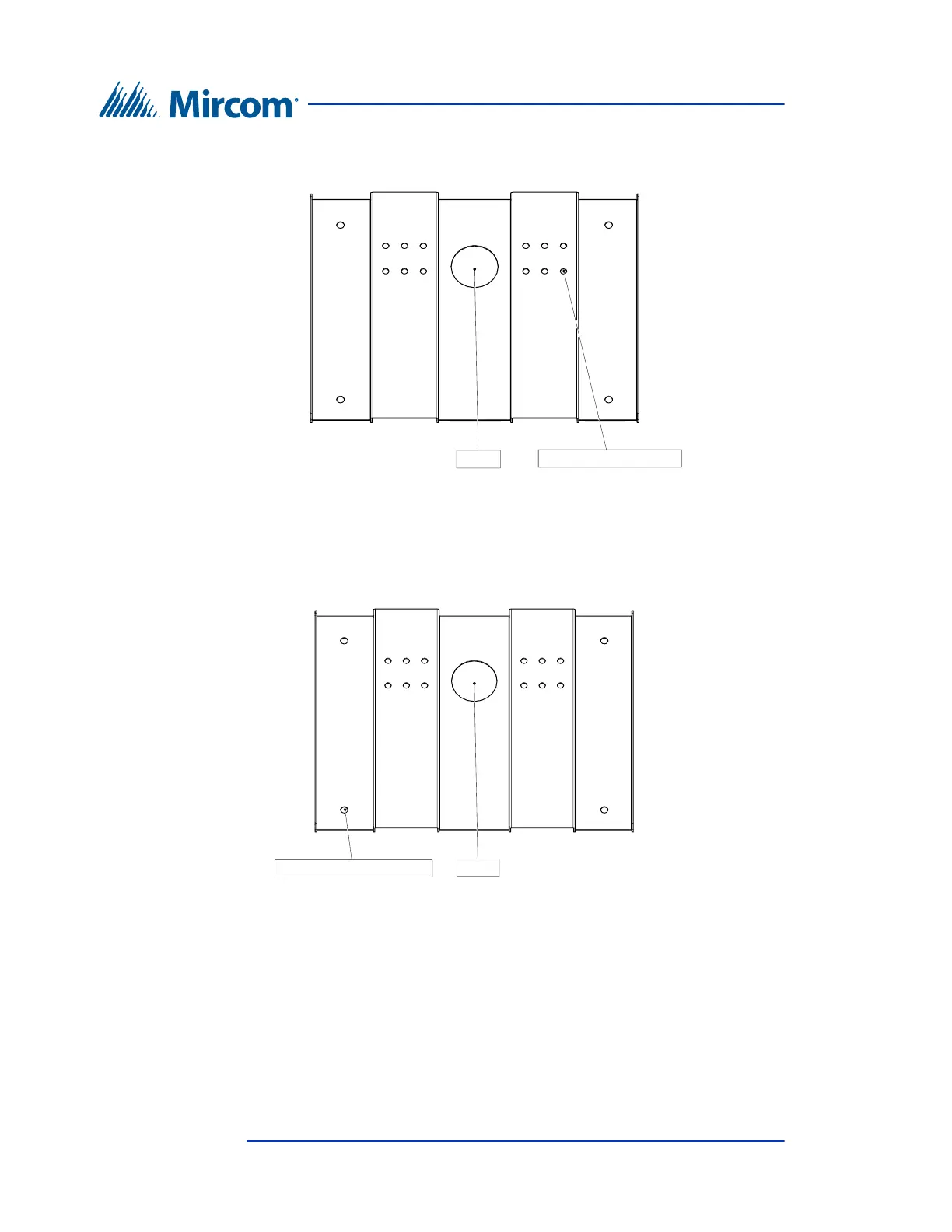

The 12 Kiosk mounting holes in the base plate are shown in figure 11.

Figure 11. Kiosk Mounting Holes

6. Using the Kiosk base plate as a template, trace an opening in the floor for

the cutout and mark the 4 base plate mounting hole locations as shown in

figure 12. Ensure that the base plate is aligned with the electrical conduit.

Figure 12. Base Plate Mounting Holes

Cutout

Kiosk Mounting Holes (x12)

Cutout

Base plate mounting holes (x4)
