Mircom TX3 Series - Figure 90 Old and New Card Reader Brackets; Figure 91 Old Card Reader Bracket

Touch Screen System and Setup
TX3 Touch Screen Installation Manual 103
Note: There are two possible styles of card reader bracket, depending on
the date of manufacture. In these instructions they are referred to as
old and new brackets.

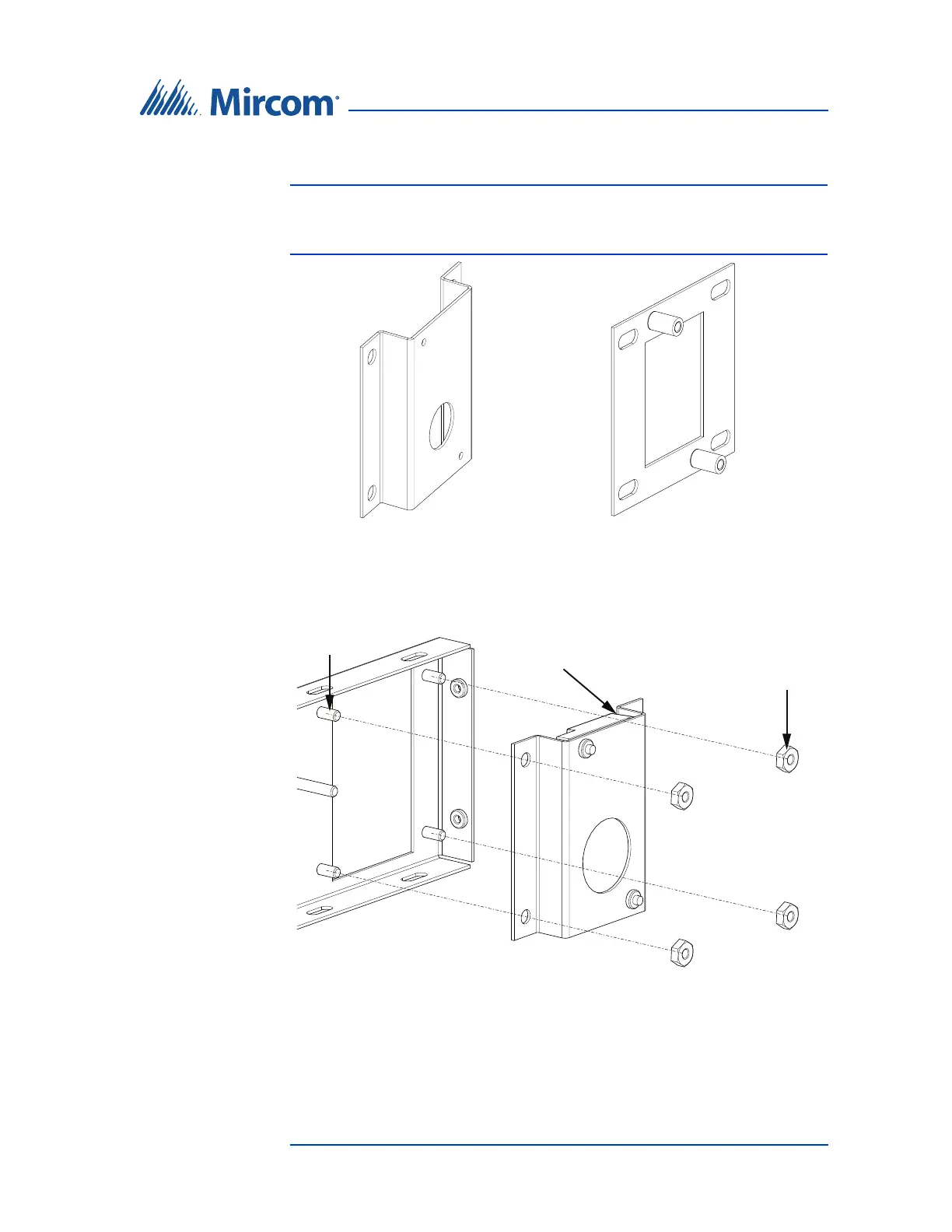

Figure 90. Old and new card reader brackets
2. Remove the card reader bracket from the Touch Screen door as shown in
Figure 91 and Figure 92.
Figure 91. Old card reader bracket
Old card reader bracket
New card reader bracket
Posts(x4)
Card Reader
and Bracket
Nuts (x4)
