66 TX3 Touch Screen Installation Manual
Installation
2. Secure the Kiosk onto the base plate using the 8 of the 12 base plate bolts
in the holes shown in Figure 57.

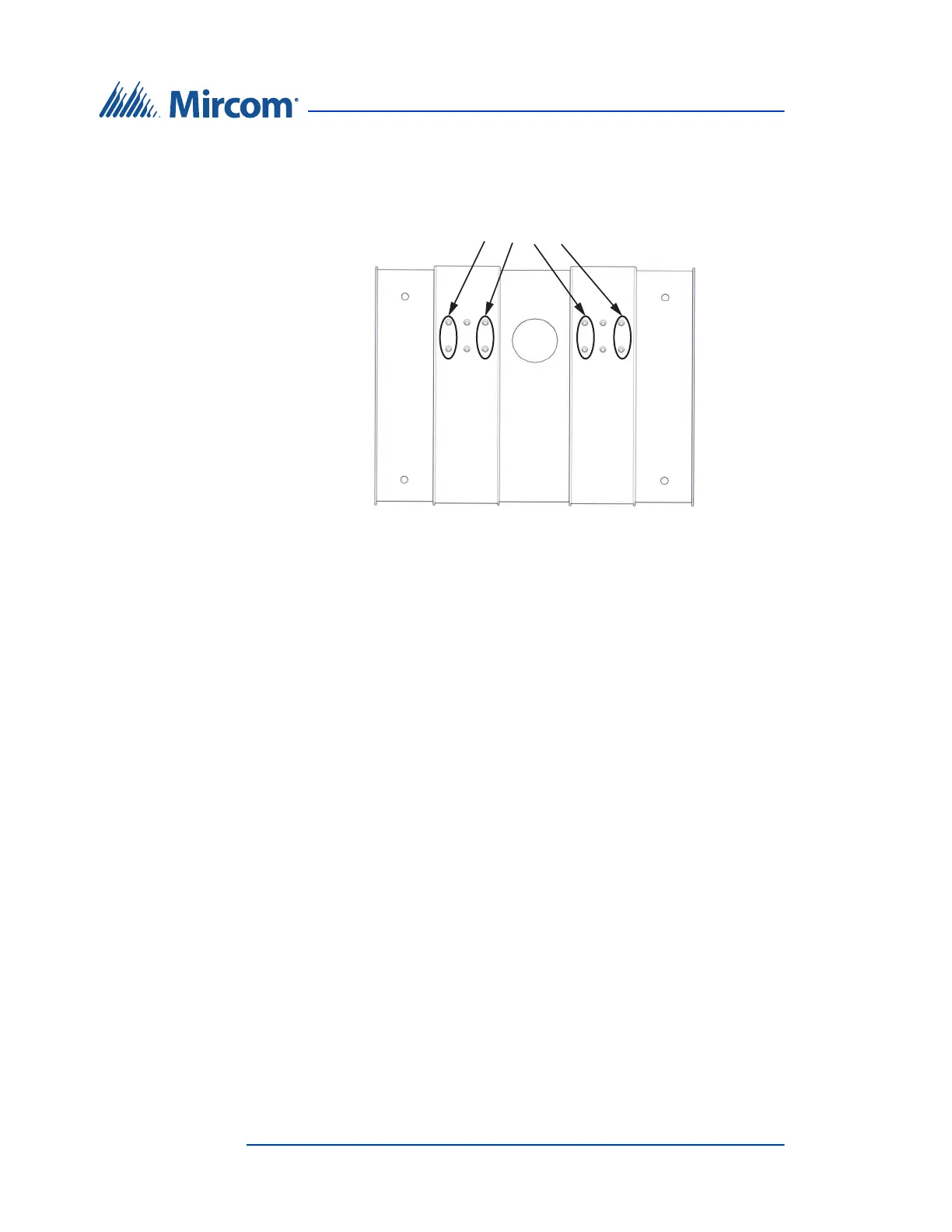

Figure 57. Attach the Kiosk to the base plate
3. Position the reinforcement bracket over the 6 studs on the inside of the
Kiosk, and screw the 6 nuts on to the studs as shown in Figure 50.
4. Secure the reinforcement bracket to the base plate using the remaining 4
base plate bolts in the remaining 4 holes in the base plate.
5. Fit the door to the Kiosk.
6. Proceed with the power supply installation described in section 2.11 on
page 67.
Attach the Kiosk to the base plate
with bolts in these holes rst
