Mircom TX3 Series - Installing TX3-T-KIOSK3; Figure 38 TX3-T-KIOSK3 Dimensions

54 TX3 Touch Screen Installation Manual
Installation
2.9 Installing TX3-T-KIOSK3
Warning: To prevent overheating, do not install any of the TX3 Touch
Screens in direct sunlight.
Do not mount TX3-TOUCH-S15B-WR
and
TX3-TOUCH-S15S-WR in any of the TX3 Kiosks.
Attention: The stand is heavy. Never attempt to lift this product by
yourself. At least two people should lift it together.
To ensure that there is enough room for installing the stand,
leave at least 4” (102 mm) clearance between the back of the
floor bracket and the wall.
To ensure that there is enough room for opening the door after
the stand is installed, leave at least 25” (635 mm) clearance
between the back of the floor bracket and the wall.
Install the power supply outside the enclosure.

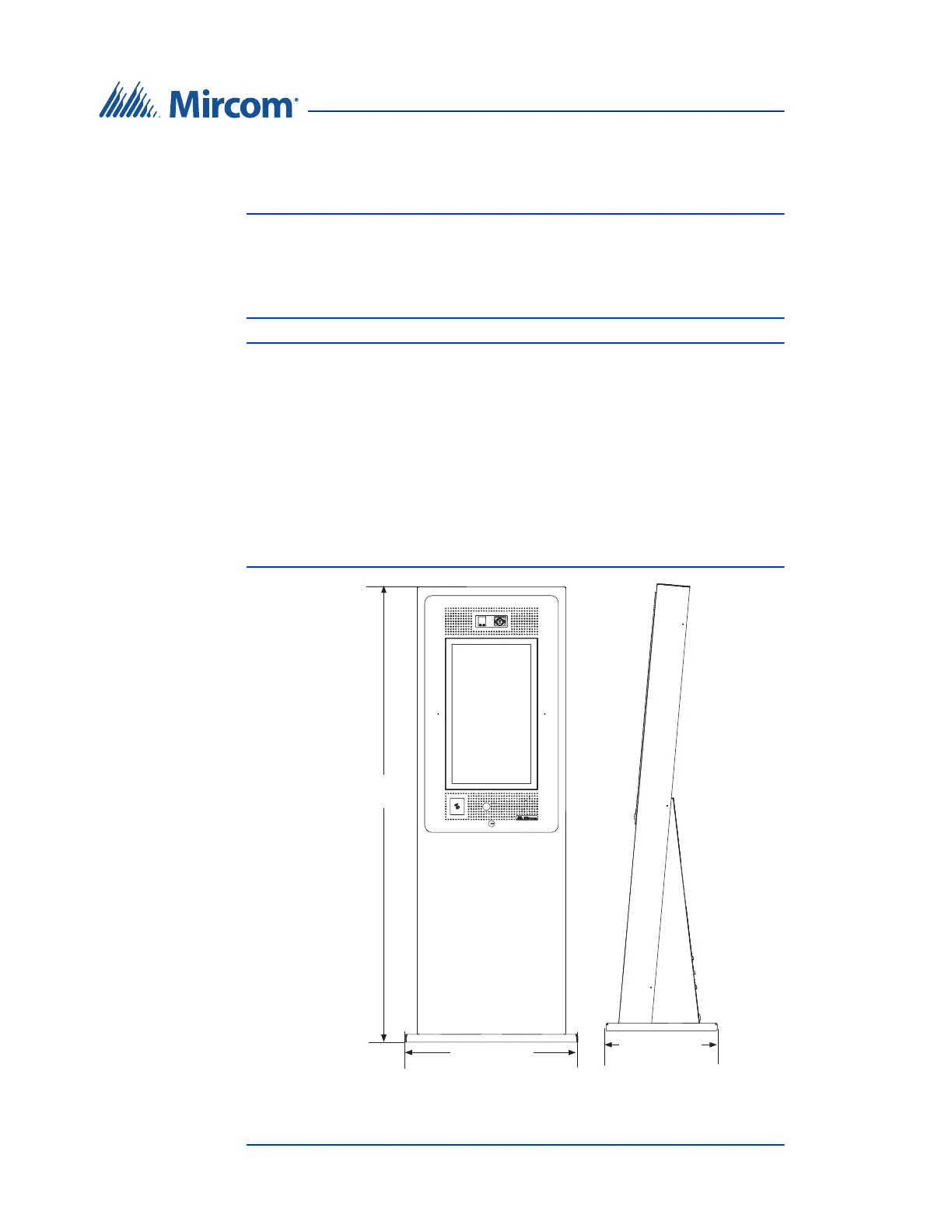

Figure 38. TX3-T-KIOSK3 dimensions
23 1/4” (591 mm)
61 11/32”
(1558 mm)
15 1/4” (387 mm)
