50 TX3 Touch Screen Installation Manual
Installation
3. Ensure that the floor bracket fits into the back lip of the stand..

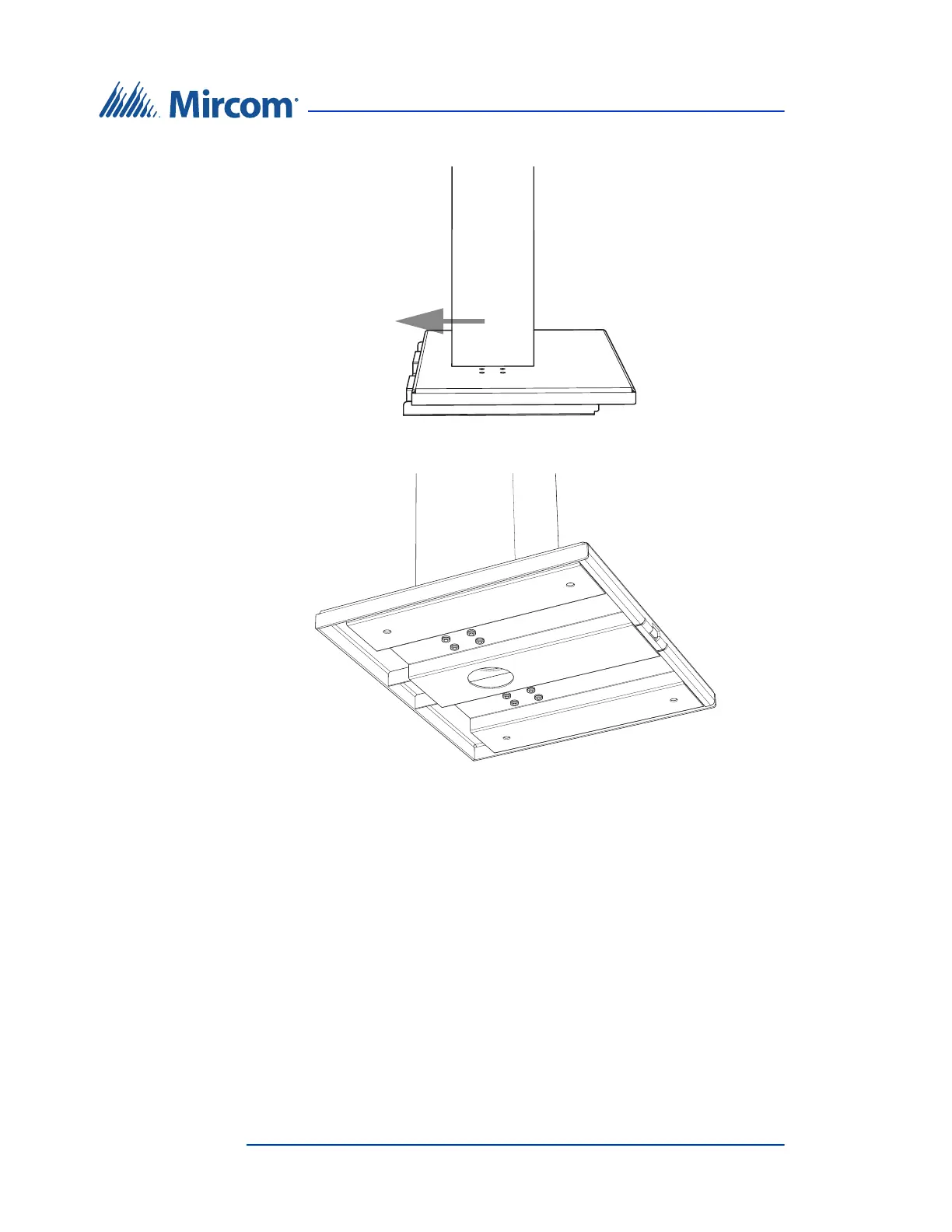

Figure 32. Fit the stand on the floor bracket
Figure 33. Fit the stand on the floor bracket (as seen from below)
