Installation
TX3 Touch Screen Installation Manual 25

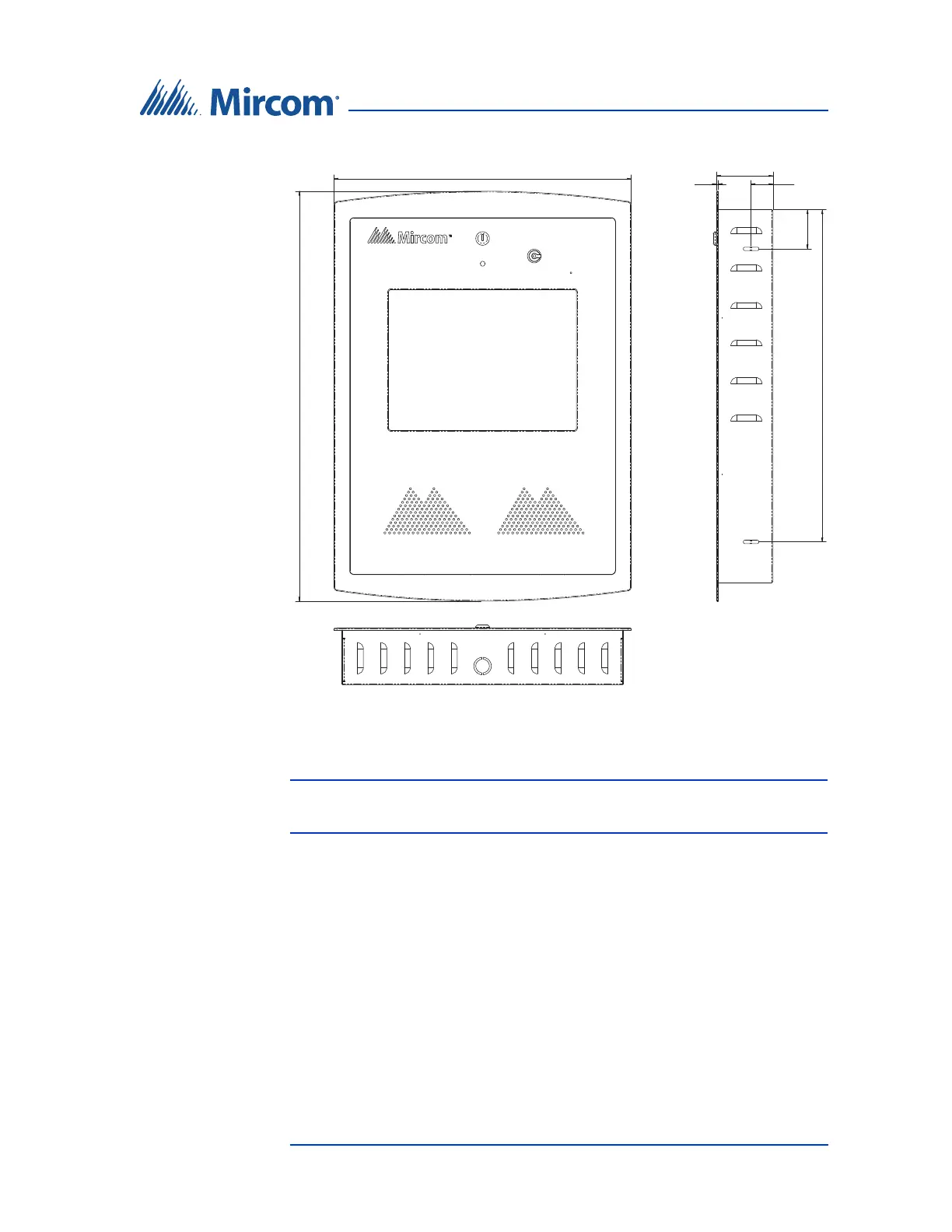

Figure 8. TX3-TOUCH-F15-A flush mount front dimensions
(inches)
Warning: To prevent overheating, do not install any of the TX3 Touch
Screens in direct sunlight.
The flush mount enclosure mounts directly inside the wall to the wall stud or
supporting structure as shown in Figure 9. Mount the enclosure flush with the
wall and right-side up (the knockout is at the bottom).
You need:
• 6 fasteners appropriate for the wall that you are mounting the enclosure
on.
26.200
19.000
3.622
0.120
2.500
21.225
1.400
