58 TX3 Touch Screen Installation Manual
Installation
To fit the Touch Screen on the stand
Warning: Use only the 22 inch flush mount Touch Screen
(TX3-TOUCH-F22) with this stand. Do not mount
TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR in any
of the TX3 Kiosks.
Attention: The 22” Touch Screen enclosure is heavy. Never attempt to lift
this product by yourself. At least two people should lift it
together.
1. Fit the Touch Screen on the six studs on the stand.
2. Attach the 6 included screws to the studs.
3. Run the wires through the knockout at the bottom of the Touch Screen.

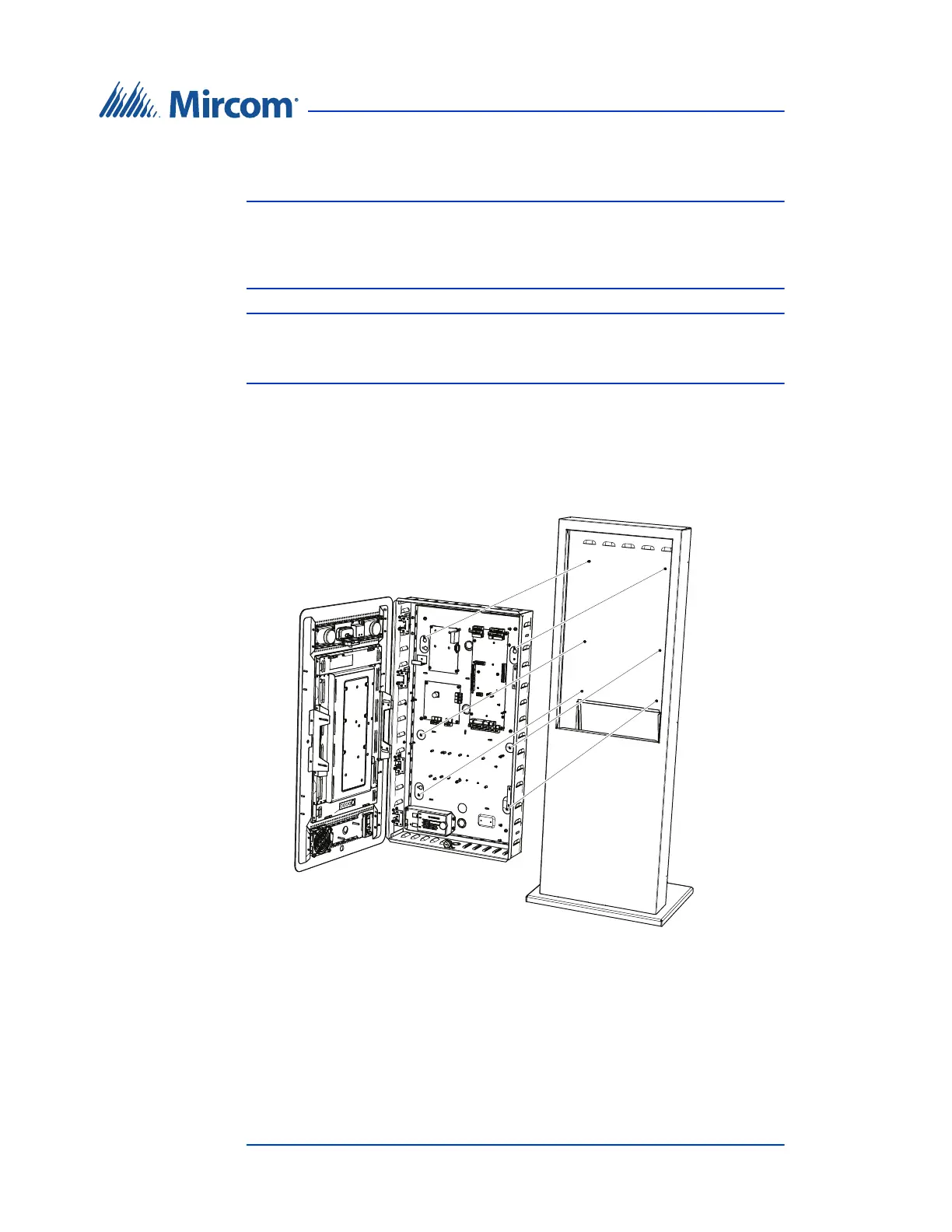

Figure 44. Mount TX3-TOUCH-S22 on the stand
