48 TX3 Touch Screen Installation Manual
Installation
• 1 x floor bracket
• 8 x screws for attaching the stand to the floor bracket
• 8 x screw covers
• 8 x screw bases
• 6 x screws for attaching the Touch Screen to the stand
Weight: 65.5 lb (30 kg)
You need:
• 4 bolts to attach the base plate to the floor. The bolts need to fit holes that
are 13/32” (10 mm) in diameter.

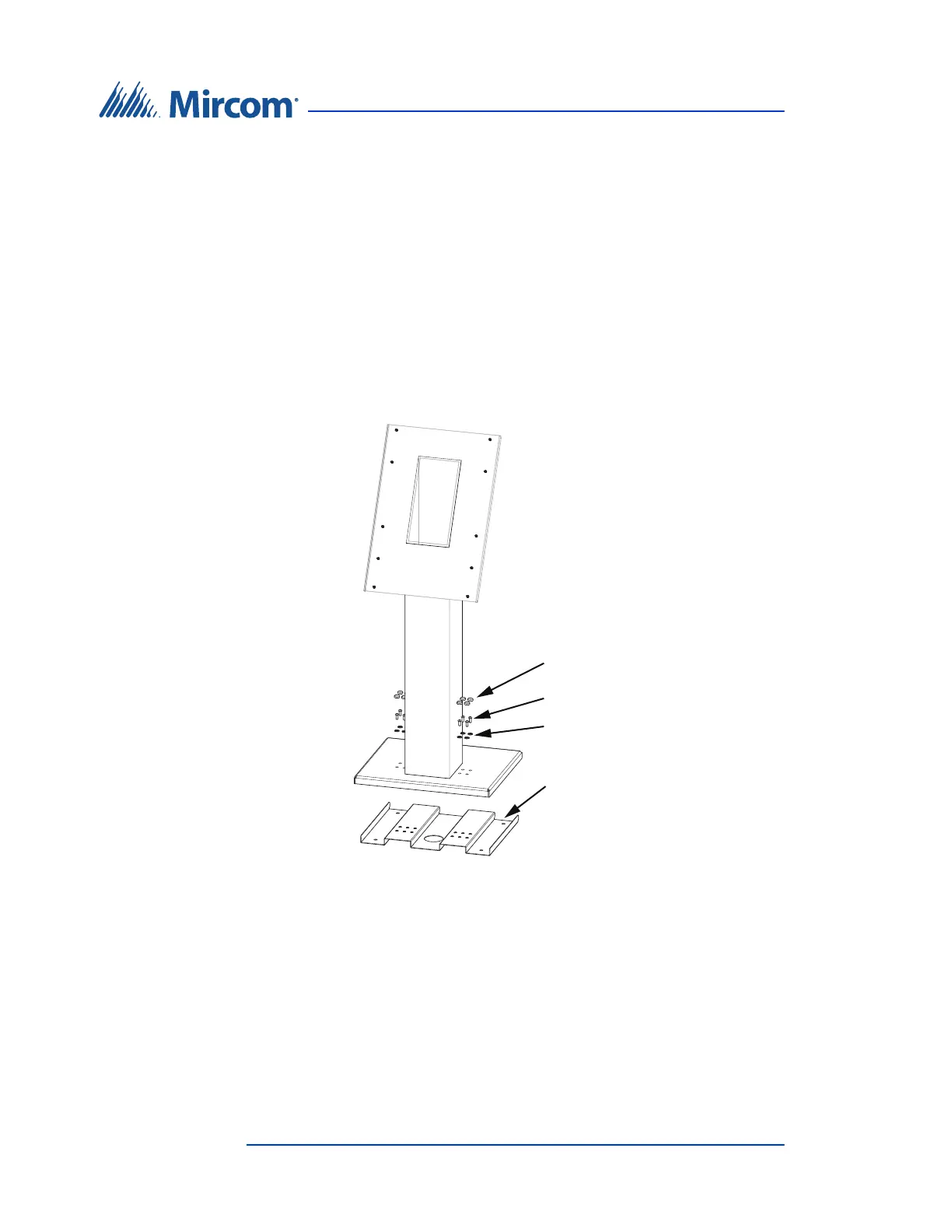

Figure 30. TX3-T-KIOSK2 components
1. Ensure that the base plate is aligned with the electrical conduit.
2. Using the base plate as a template, trace an opening on the floor for the
cutout and mark the 4 floor bracket mounting hole locations.
Screw covers (x8)
Screws (x8)
Screw bases (x8)
Floor bracket
