Installation
TX3 Touch Screen Installation Manual 39

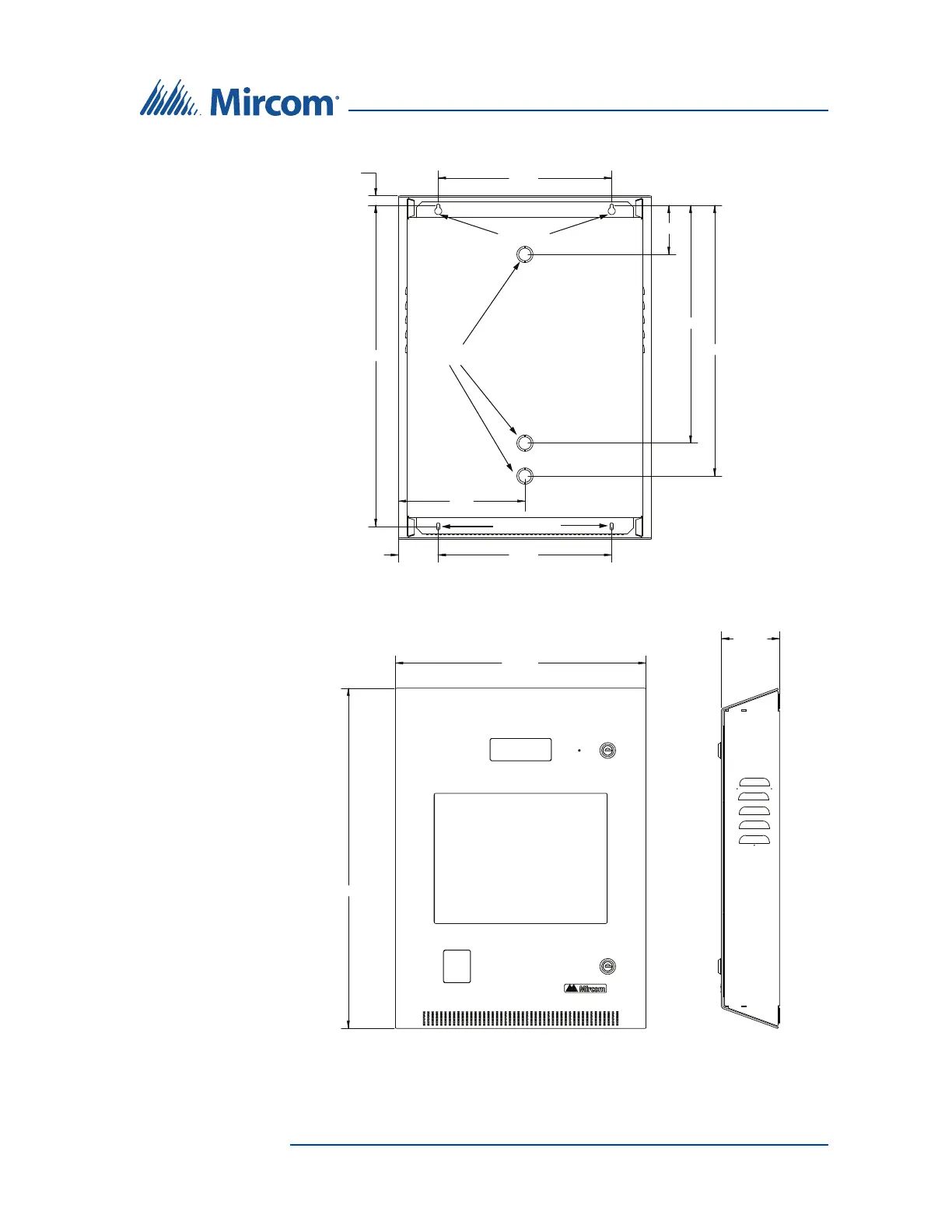

Figure 18. TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR
mounting hole and knockout dimensions
Figure 19. TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR
overall dimensions
21/32”
3 13/32”
16 15/32”
18 3/4”
12”
2 3/4” 12”
8 3/4”
22 7/32”
Mounting holes
Mounting holes
Knockouts
23 25/32”
17 1/2”
4 1/16”
