3.6 TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR
Inside Door, Boards, and Grounding
3.6.1 Inside Door
The inside doors contain the following components as shown in Figure 73:
•Camera
• Microphone
•Display
• P300 Card Reader

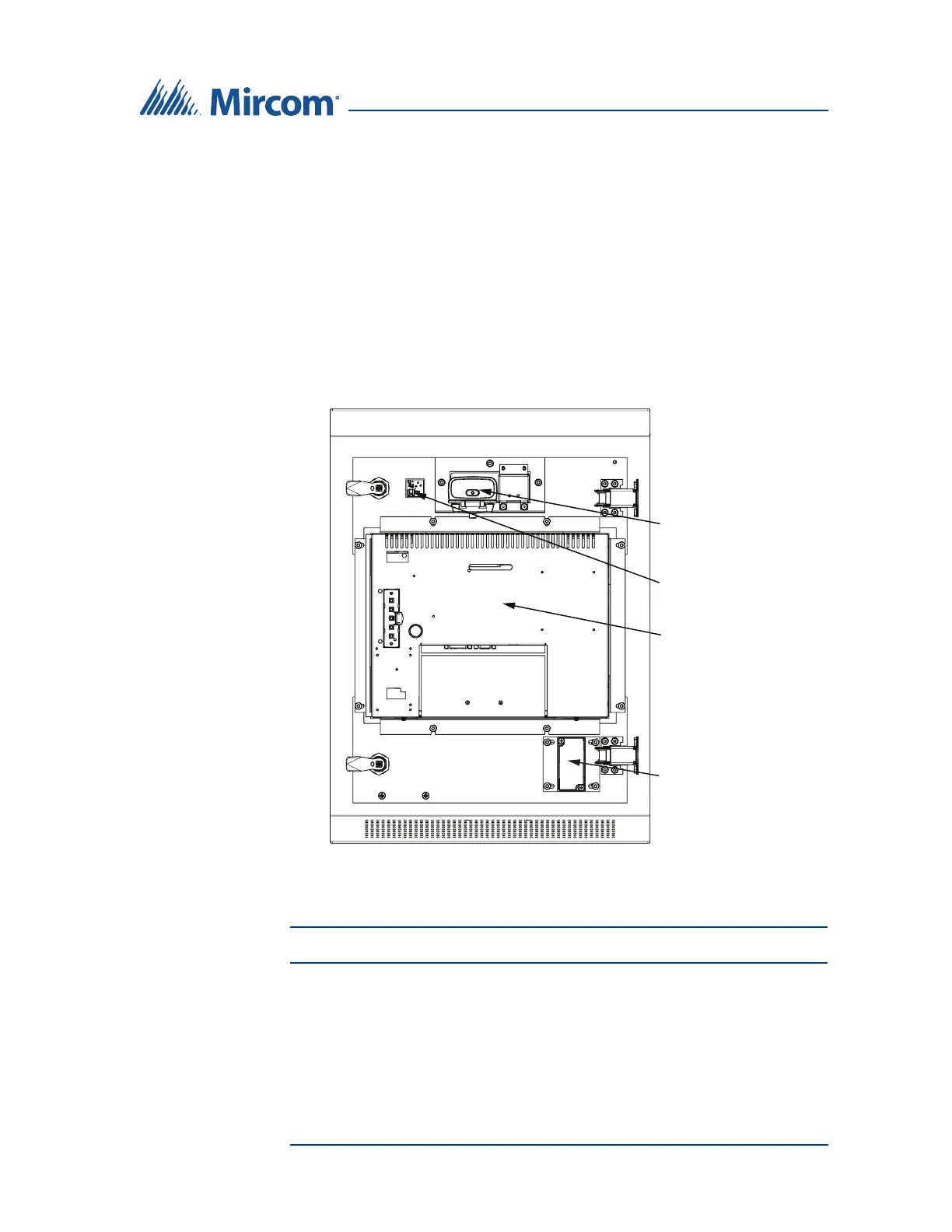

Figure 73. TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR
inside door
Note: Mircom sells a postal lock adapter: part number DO-CR3.
Camera
Microphone
P300 Card Reade
r
Display
