Mircom TX3 Series - Installing TX3-T-KIOSK2; Figure 28 Dimensions of TX3-T-KIOSK2 with TX3-TOUCH-S22

46 TX3 Touch Screen Installation Manual
Installation
2.8 Installing TX3-T-KIOSK2
Warning: To prevent overheating, do not install any of the TX3 Touch
Screens in direct sunlight.
Do not mount TX3-TOUCH-S15B-WR
and
TX3-TOUCH-S15S-WR in any of the TX3 Kiosks.

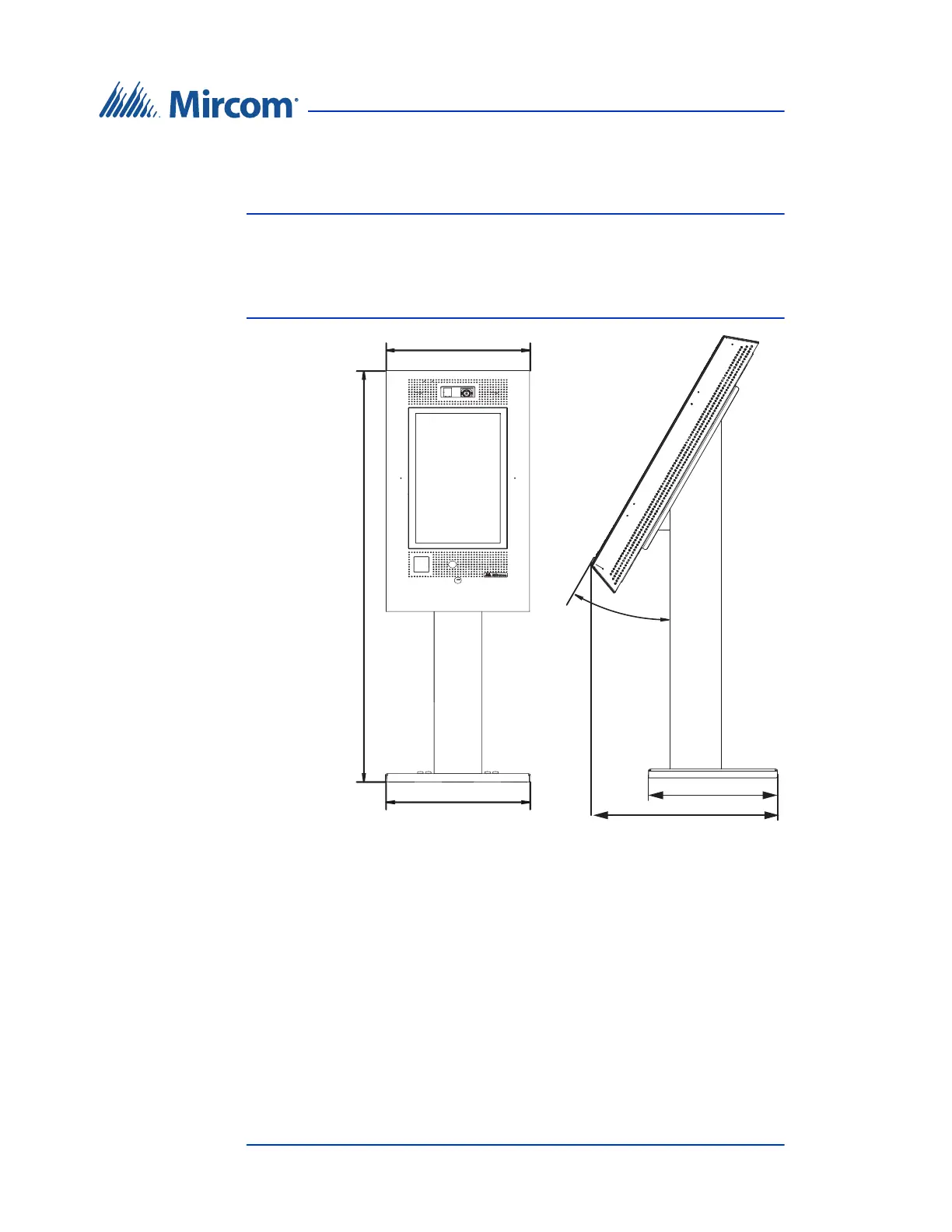

Figure 28. Dimensions of TX3-T-KIOSK2 with TX3-TOUCH-S22
18” (457 mm)
51 23/32” (1313 mm)
18 13/64” (462 mm)
15 3/16” (386 mm)
22 3/16” (563 mm)
30°
